The Comprehensive Guide To 100 Ohm Resistors

Introduction to Resistors

A  resistor  is a fundamental electronic component designed to limit or regulate the flow of electric current in a circuit. It obeys Ohm’s Law ($V=IR$), which relates voltage ($V$), current ($I$), and resistance ($R$). Resistors are used for voltage division, current limiting, and signal conditioning, among other applications.

What is a 100 Ohm Resistor?

A 100 Ohm resistor provides a resistance of 100 Ohms, impeding current flow to a specific level. It is a common value used in low-power circuits, such as LED current limiting, digital logic interfacing, and analog signal processing.

Construction and Types

1. Materials and Design

• Carbon Film: Affordable, with moderate tolerance (5%).
• Metal Film: Higher precision (1%–2% tolerance), better temperature stability.
• Wirewound: Handles high power but is bulkier.
• Surface-Mount (SMD): Compact, used in modern electronics (e.g., marked “101” for 100Ω).

2. Physical Forms

• Axial Leads: Cylindrical with wire leads for through-hole circuits.
• SMD Packages: Tiny rectangular chips (e.g., 0805, 1206) for PCBs.

Identifying a 100 Ohm Resistor

Color Code (4-Band Axial Resistor)

• Bands: Brown (1), Black (0), Brown (×10¹), Gold (±5% tolerance).

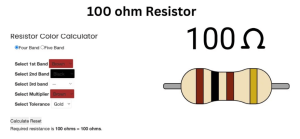

  • Visualization:

    Example: Brown (1), Black (0), Brown (10×), Gold (5%).

SMD Marking

• Code “101”: First two digits (10) + multiplier (1 → 10¹) = 10 × 10 = 100Ω.

Applications of 100 Ohm Resistors

1. LED Current Limiting
   • Protects LEDs from excessive current.
   • Example: With a 5V supply and a 2V LED:
     R=(5V−2V)0.02A=150ΩR=0.02A(5V−2V)​=150Ω. A 100Ω resistor allows 30mA (adjust based on LED specs).
2. Pull-Up/Pull-Down Resistors
   • Stabilizes digital input pins (e.g., in Arduino/Raspberry Pi).
3. Voltage Dividers
   • Paired with another resistor to scale voltages (e.g., sensor interfacing).
4. Impedance Matching
   • Minimizes signal reflection in communication lines.

Power Rating and Selection

• Common Ratings: ¼W (0.25W), ½W (0.5W).
  • Calculate power dissipation: P=I2RP=I2R or P=V2RP=RV2​.
    Example: At 5V, P=52100=0.25WP=10052​=0.25W. Use a ½W resistor for safety margin.
• Tolerance: ±1% (precision) to ±5% (general use).
• Temperature Coefficient: <100 ppm/°C for stable performance.

Testing and Troubleshooting

1. Multimeter Testing
   • Measure resistance out-of-circuit to avoid parallel interference.
   • A faulty resistor may read ∞ (open) or deviate >5% from 100Ω.
2. Common Failures
   • Overheating: Caused by exceeding power rating.
   • Physical Damage: Cracked body or discoloration indicates failure.

Practical Considerations

• Adjacent Values:
  • 220Ω vs. 100Ω: Lower current for LEDs (e.g., 220Ω for 15mA at 5V).
• Soldering Tips:
  • Avoid prolonged heat to prevent damage (especially SMD types).

Frequently Asked Questions (FAQ)

Q1. Can I use a 100Ω resistor for 12V circuits?

• Calculate power: 122100=1.44W100122​=1.44W. Use a 2W+ resistor to avoid burnout.

Q2. Why does my 100Ω resistor get hot?

• Check power dissipation. Upgrade to a higher wattage or reduce voltage/current.

Q3. Are 100Ω resistors polarized?

• No; they can be installed in either direction.

Conclusion

The 100 Ohm resistor is versatile and ubiquitous in electronics, serving roles from LED protection to signal conditioning. Understanding its specifications, applications, and testing methods ensures reliable circuit design. Always verify power requirements and tolerance to optimize performance and longevity.
