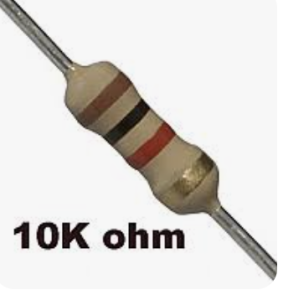

The Comprehensive Guide To 10k Ohm Resistors

10k ohm resistors are among the most commonly used components in electronics. Their versatility makes them essential in circuits ranging from simple LED projects to complex industrial systems. This guide explores their fundamentals, applications, selection criteria, and troubleshooting tips.

1. What is a Resistor?

A resistor is a passive two-terminal component that limits current flow and divides voltage. Its resistance (measured in ohms, Ω) determines how much it opposes electric current. Resistors follow Ohm’s Law:

$$V=I\times R$$

where $V$ = voltage (V), $I$ = current (A), and $R$ = resistance (Ω).

2. Understanding 10k Ohm Resistors

A 10k ohm resistor has a resistance of 10,000 ohms. It is often used for:

• Voltage division (e.g., sensor circuits).
• Current limiting (e.g., protecting LEDs).
• Pull-up/pull-down configurations (e.g., microcontroller input stability).

Why 10k Ohm?

• Balances current consumption and noise immunity in digital circuits.
• Matches impedance in analog signal chains.
• Widely available and cost-effective.

3. Color Coding for 10k Ohm Resistors

Most through-hole resistors use color bands to denote resistance, tolerance, and temperature coefficient.

4-Band Resistor

Example: Brown-Black-Orange-Gold = 10 × 10³ Ω = 10k Ω ±5%.

5-Band Resistor (Higher Precision)

Example: Brown-Black-Black-Red-Brown = 100 × 10² Ω = 10k Ω ±1%.

4. Applications of 10k Ohm Resistors

A. Voltage Dividers

Used with sensors (e.g., thermistors, photoresistors) to convert resistance changes into measurable voltages.
Example:

Vout=Vin×R2R1+R2Vout​=Vin​×R1​+R2​R2​​

If R1=10kΩR1​=10kΩ (sensor) and R2=10kΩR2​=10kΩ, Vout=12VinVout​=21​Vin​.

B. Pull-Up/Pull-Down Resistors

• Pull-Up: Connects unused logic pins to VccVcc​ (e.g., 10k Ω on Arduino inputs to prevent floating signals).
• Pull-Down: Connects pins to ground for stable default LOW states.

C. Current Limiting

Protects components like LEDs. For a 5V supply and 2V LED:

R=Vsupply−VLEDI=5V−2V0.02A=150ΩR=IVsupply​−VLED​​=0.02A5V−2V​=150Ω

Note: 10k Ω is too high for LEDs but suitable for low-current ICs.

D. Signal Conditioning

Filters high-frequency noise in analog circuits (e.g., RC low-pass filters with capacitors).

E. Biasing Transistors

Sets operating points in amplifier circuits.

5. Selecting a 10k Ohm Resistor

Key Parameters

1. Power Rating:
   • Common ratings: 1/4W (through-hole), 1/8W (SMD).
   • Calculate power dissipation:

     P=I2×RP=I2×RAt 10V: P=(10)210,000=0.01WP=10,000(10)2​=0.01W (safe for 1/4W resistors).

2. Tolerance:
   • Standard: ±5% (carbon film), ±1% (metal film).
3. Temperature Coefficient:
   • Carbon film: ±500 ppm/°C.
   • Metal film: ±50 ppm/°C (better for precision).
4. Package Type:
   • Through-hole (axial), SMD (0805, 0603).

6. Troubleshooting 10k Ohm Resistors

Common Issues

• Overheating: Exceeding power rating.
• Open Circuit: Infinite resistance due to damage.
• Drifting Values: Aging or overheating.

Testing with a Multimeter

1. Set the multimeter to Ω mode.
2. Measure resistance; a functioning 10k resistor should read 9.5k–10.5k (±5% tolerance).

7. Frequently Asked Questions (FAQ)

Q1: Can I substitute a 10k resistor with another value?

• Yes, but adjust calculations (e.g., voltage dividers). For pull-up/down, 4.7k–100k Ω often works.

Q2: Why does my 10k resistor get hot?

• Check power dissipation. At 10V, it should stay cool. If hot, reduce voltage or use a higher wattage resistor.

Q3: Are 10k SMD resistors color-coded?

• No. SMD resistors use numeric codes (e.g., “103” = 10 × 10³ = 10k Ω).

Conclusion

10k ohm resistors are indispensable in electronics due to their adaptability and balance between performance and practicality. Whether stabilizing digital signals or conditioning analog inputs, understanding their role ensures robust circuit design. Always verify values with a multimeter and consider environmental factors like temperature in critical applications.

Pro Tip: Keep a variety of 10k resistors (carbon, metal film, SMD) in your toolkit for prototyping flexibility!
