Resistors are fundamental components in electronics, controlling current flow and voltage levels. Among them, the 1k ohm resistor (1,000 ohms) is one of the most versatile and widely used. This guide explores its properties, applications, selection criteria, and common pitfalls, providing a detailed resource for engineers, hobbyists, and students.
Table of Contents
Toggle1. Basics of Resistors
What is a Resistor?
A resistor restricts electrical current flow, converting excess energy into heat. It follows Ohm’s Law:
V=I×RV=I×R
where VV is voltage, II is current, and RR is resistance.
Types of Resistors
- Through-Hole (Axial): Cylindrical with leads for breadboards or PCBs (e.g., carbon film, metal film).
- Surface-Mount (SMD): Compact for modern electronics (e.g., 0805, 0603 packages).
- Wirewound: High-power applications.
- Variable (Potentiometers): Adjustable resistance.
2. Understanding 1k Ohm Resistors
Specifications
- Resistance: 1,000 ohms (1kΩ).
- Tolerance: Typically ±5% (gold band) or ±1% (brown band).
- Power Rating: Common ratings: ¼W, ½W, or 1W.

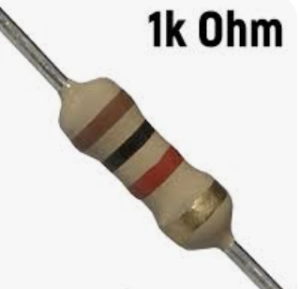

Color Code (4-Band Through-Hole)
| Band 1 (1st Digit) | Band 2 (2nd Digit) | Band 3 (Multiplier) | Band 4 (Tolerance) |
|---|---|---|---|
| Brown (1) | Black (0) | Red (×100) | Gold (±5%) |
Why 1kΩ?
- Balanced Current: Limits current effectively without excessive voltage drop.
- Common Value: Standard in voltage dividers, pull-up/down networks, and LED circuits.
3. Applications of 1k Ohm Resistors
1. Current Limiting for LEDs
Prevents LED burnout by restricting current. Example:
R=Vsupply−VLEDILEDR=ILEDVsupply−VLED
For a 5V supply and 2V LED at 20mA:
R=5V−2V0.02A=150ΩR=0.02A5V−2V=150Ω
A 1kΩ resistor reduces current to 3mA, dimming the LED safely.
2. Pull-Up/Pull-Down Resistors
- Pull-Up: Connects microcontroller pins to VccVcc (e.g., ensuring a default HIGH state).
- Pull-Down: Connects pins to ground (default LOW state).
3. Voltage Dividers
Pairs with another resistor to split voltage. Two 1kΩ resistors divide VinVin by 2:
Vout=Vin×R2R1+R2Vout=Vin×R1+R2R2
4. Signal Conditioning
Attenuates signals or filters noise in combination with capacitors (RC circuits).
5. Timing Circuits
Sets charge/discharge rates in RC timers (e.g., blinking LEDs).
4. Selecting and Using 1kΩ Resistors
Key Considerations
- Power Rating:
P=I2×RP=I2×RFor 10mA: P=0.012×1000=0.1WP=0.012×1000=0.1W. A ¼W resistor suffices.
- Tolerance: ±5% (950–1050Ω) for general use; ±1% for precision.
- Temperature Coefficient: <100 ppm/°C for stable performance.
Mounting Tips
- Through-Hole: Bend leads carefully; avoid overheating while soldering.
- SMD: Use tweezers and reflow techniques.
Testing
- Multimeter: Measure resistance out-of-circuit. A 1kΩ ±5% resistor should read 950–1050Ω.
5. Common Mistakes and Solutions
- Wrong Value: Verify with a multimeter. Substitutes:
- Series: Two 500Ω resistors (non-standard).
- Parallel: Two 2kΩ resistors.
- Overheating: Check power dissipation; use a higher wattage resistor if needed.
- Incorrect Placement: Ensure correct orientation in voltage dividers or pull networks.
6. Alternatives to 1kΩ Resistors
- Variable Resistors: Potentiometers for adjustable setups.
- Series/Parallel Networks: Combine resistors to approximate 1kΩ.
- Digital Potentiometers : Programmable alternatives for advanced circuits.
Conclusion
The 1kΩ resistor’s balance of current limitation and voltage control makes it indispensable in electronics. By understanding its specifications, applications, and proper usage, you can avoid common pitfalls and leverage its versatility in diverse projects. Always verify resistor values and power requirements to ensure circuit reliability.
