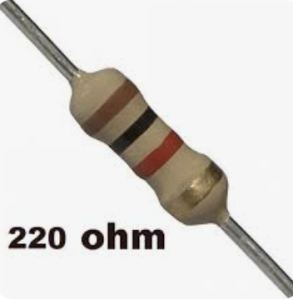

The Comprehensive Guide To 220 Ohm Resistors

Resistors are fundamental electronic components that limit the flow of electric current in a circuit. Their resistance is measured in ohms (Ω), and they are used for tasks such as controlling voltage levels, protecting components, and shaping signal waveforms. The 220 Ohm resistor is one of the most commonly used values in electronics due to its versatility in current-limiting applications, particularly with LEDs and digital circuits.

This guide explores the 220 Ohm resistor in detail, covering identification, applications, technical specifications, testing methods, and best practices for use.

1. Color Code Identification

Resistors use color bands to indicate their resistance value, tolerance, and sometimes temperature coefficient. For a 220 Ohm resistor:

4-Band Color Code (Most Common):

• Bands: Red (2) – Red (2) – Brown (10x multiplier) – Gold (±5% tolerance).
• Calculation: 22×101=220 Ω±5%22×101=220Ω±5%.

5-Band Color Code (Higher Precision):

• Bands: Red (2) – Red (2) – Black (0) – Black (10⁰ multiplier) – Brown (±1% tolerance).
• Calculation: 220×100=220 Ω±1%220×100=220Ω±1%.

Example: A 4-band resistor with red, red, brown, and gold bands is 220 Ω ±5%.

2. Applications of 220 Ohm Resistors

a) LED Current Limiting

LEDs require current limiting to prevent burnout. A 220 Ω resistor is ideal for low-power LEDs (e.g., 3V–5V circuits):

• Formula: R=Vsource−VLEDILEDR=ILED​Vsource​−VLED​​.
  • For a 5V supply and a red LED (VLED=2VVLED​=2V, ILED=20mAILED​=20mA):
    R=5V−2V0.02A=150 ΩR=0.02A5V−2V​=150Ω.
  • A 220 Ω resistor provides ~13.6mA, a safe value for most LEDs.

b) Digital Circuits

• GPIO Protection: Limits current in microcontroller pins (e.g., Arduino, Raspberry Pi).
• Pull-Up/Down Resistors: Stabilizes signals in logic circuits.
• UART/Serial Communication: Reduces noise between devices.

c) Voltage Division

Used in voltage dividers with other resistors to scale down voltages for sensors or ADCs.

3. Power Ratings and Tolerance

Power Rating (Wattage)

• Common Ratings: 1/8W (0.125W), 1/4W (0.25W), 1/2W (0.5W).
• Maximum Current: Calculated using I=PRI=RP​​.
  • For a 1/4W resistor: I=0.25220≈33.6mAI=2200.25​​≈33.6mA.

Tolerance

• Standard tolerance: ±5% (gold) or ±1% (brown).
• A 220 Ω ±5% resistor can range from 209 Ω to 231 Ω.

4. Testing and Measurement

Using a Multimeter:

1. Set the multimeter to Ω mode.
2. Probe the resistor leads (out-of-circuit for accuracy).
3. Check if the reading is within the tolerance range.

Note: In-circuit measurements may be inaccurate due to parallel components.

5. Sourcing and Purchasing

Types and Packages:

• Through-Hole: Axial leads for breadboards (common sizes: 1/4W, 1/2W).
• Surface-Mount (SMD): Compact sizes like 0805 or 1206.
• Materials: Carbon film (low cost), metal film (precision), wirewound (high power).

Where to Buy:

• Retailers: Digi-Key, Mouser, RS Components, Amazon.
• Price: ~$0.01–$0.10 per unit in bulk.

6. Safety and Handling

• Soldering: Avoid exceeding 300°C to prevent damage.
• ESD Protection: Use anti-static mats for SMD resistors.
• Overheating: Ensure power dissipation stays below the rated wattage.

7. Common Mistakes and Troubleshooting

• Wrong Resistor Value: Double-check color codes with a multimeter.
• Overheating: Upgrade to a higher wattage resistor if P=I2RP=I2R exceeds the rating.
• Incorrect LED Brightness: Recalculate resistor value for desired current.

8. FAQs

Q1: Can I use a 200 Ω or 250 Ω resistor instead?

A: Yes, in non-critical applications (e.g., LEDs will be slightly brighter/dimmer).

Q2: How to create 220 Ω with series/parallel resistors?

A:

• Series: 100 Ω + 120 Ω = 220 Ω.
• Parallel: Two 440 Ω resistors in parallel.

Q3: Why does my resistor get hot?

A: It’s dissipating excess power. Use a higher wattage resistor or reduce current.

Conclusion

The 220 Ohm resistor is a cornerstone of electronics, balancing simplicity and functionality. By understanding its specifications, applications, and handling practices, you can effectively integrate it into circuits ranging from DIY projects to industrial designs. Always verify values with a multimeter and prioritize safety to ensure reliable performance.
