The Comprehensive Guide To 470 Ohm Resistors

Resistors are fundamental components in electronics, used to control current flow, divide voltages, and protect sensitive components. Among the myriad of resistor values, the 470 Ohm resistor stands out as a common and versatile choice. This guide explores everything you need to know about 470 Ohm resistors, from their technical specifications to practical applications.

Basics of Resistors

What is a Resistor?

A resistor is a passive electrical component that opposes the flow of electric current. It is characterized by its resistance value (measured in Ohms, Ω), power rating (in watts), and tolerance (accuracy of the resistance value).

Ohm’s Law

Ohm’s Law defines the relationship between voltage (V), current (I), and resistance (R):

$$V=I\times R$$

This equation helps engineers calculate the required resistor value for a circuit.

Key Parameters

1. Resistance: The value in Ohms (e.g., 470 Ω).
2. Power Rating: Maximum power the resistor can dissipate without damage (e.g., 0.25W, 0.5W).
3. Tolerance: The allowable deviation from the stated value (e.g., ±5%).

Understanding 470 Ohm Resistors

Why 470 Ohms?

The 470 Ohm resistor is part of the E12 resistor series, which includes 12 standard values per decade ( 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82). Multiplying these by factors of 10 yields common values like 470 Ω (47 × 10¹). This standardization ensures widespread availability and compatibility.

Color Code Identification

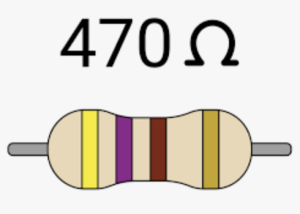

Through-hole 470 Ohm resistors use a  4-band color code :

• Bands: Yellow (4) – Violet (7) – Brown (10¹) – Gold (±5%).

For surface-mount (SMD) resistors, the marking “471” denotes 47 × 10¹ = 470 Ω.

Applications of 470 Ohm Resistors

1. LED Current Limiting

A 470 Ω resistor is commonly used to limit current in LED circuits. For example, with a 5V supply and a 2V LED:

R=Vsupply−VLEDI=5V−2V0.02A=150ΩR=IVsupply​−VLED​​=0.02A5V−2V​=150Ω

While 150Ω is ideal, a 470Ω resistor provides a safer current (~6.4mA), prolonging LED life.

2. Pull-Up/Pull-Down Resistors

In digital circuits (e.g., microcontrollers), 470Ω resistors prevent floating inputs by pulling signals to Vcc or GND.

3. Voltage Dividers

Paired with another resistor, a 470Ω resistor can create a voltage divider for sensors or analog circuits.

4. Transistor Biasing

Ensures transistors operate in their active region by setting base current.

5. Audio and Filter Circuits

Acts as a load resistor or part of RC filters in audio applications.

How to Use a 470 Ohm Resistor

Circuit Integration

• Breadboarding: Insert into a breadboard for prototyping.
• Soldering: Use in PCBs for permanent circuits.
• Testing: Verify resistance with a multimeter.

Power Dissipation Calculation

Calculate power to avoid overheating:

P=I2×RP=I2×R

For 20mA current:

P=(0.02A)2×470Ω=0.188WP=(0.02A)2×470Ω=0.188W

A 0.25W resistor is sufficient.

Selection Criteria

1. Tolerance: ±5% (general use) vs. ±1% (precision).
2. Power Rating: Choose 0.25W, 0.5W, or higher based on current.
3. Type:
   • Carbon Film: Low cost, moderate noise.
   • Metal Film: High accuracy, low noise.
   • Wirewound: High power applications.
4. Package: Through-hole (axial) or SMD (e.g., 0805, 1206).

Troubleshooting

1. Overheating: Check if power exceeds rating.
2. Incorrect Resistance: Measure with a multimeter; replace if out of tolerance.
3. Open/Short Circuits: Look for physical damage or discoloration.

Frequently Asked Questions

Q: Can I substitute a 470Ω resistor with another value?
A: Yes, if the replacement maintains similar current/voltage (e.g., 470Ω ±10%).

Q: What if I need a higher power rating?
A: Use a resistor with a higher wattage (e.g., 1W) or parallel resistors.

Conclusion

The 470 Ohm resistor is a workhorse in electronics, balancing versatility and availability. Whether you’re prototyping LED circuits or designing complex systems, understanding its specifications and applications ensures reliable performance. Always verify power ratings and tolerance to match your project’s needs.
