Challenges and Solutions in IC Chip Packaging: A Comprehensive Analysis In 2025

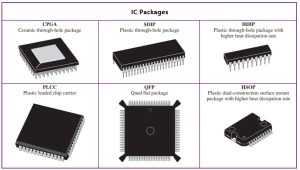

Integrated Circuit (IC) chip packaging is a critical phase in semiconductor manufacturing, ensuring protection, power delivery, and connectivity of silicon dies to external systems. As technology advances, packaging faces multifaceted challenges driven by miniaturization, increased power demands, and higher performance requirements. This article explores key challenges and innovative solutions shaping the future of IC packaging.

1. Thermal Management
Challenge: High-performance chips generate significant heat, risking reliability and performance. Traditional cooling methods struggle with power densities exceeding 100W/cm² in advanced nodes.
Solutions:

• Advanced Materials: Copper pillars and thermal interface materials (TIMs) like graphene or carbon nanotubes enhance heat dissipation.
• Design Innovations: Microfluidic cooling channels and embedded heat sinks improve thermal pathways.
• 3D Packaging: Through-silicon vias (TSVs) and interposers reduce thermal resistance in stacked dies.
  Industry Example: Intel’s Foveros 3D packaging employs face-to-face die stacking with optimized thermal management.

2. Signal Integrity and High-Speed Performance
Challenge: High-frequency operation (e.g., 5G, AI) introduces signal loss, crosstalk, and electromagnetic interference (EMI).
Solutions:

• Low-Loss Dielectrics: Polyimide and liquid crystal polymer (LCP) substrates minimize signal attenuation.
• Shielding Techniques: Electromagnetic shielding cages and ground planes reduce noise.
• 3D Integration: TSVs and silicon interposers shorten interconnect lengths, enhancing speed.
  Industry Example: TSMC’s InFO (Integrated Fan-Out) technology enables fine-pitch RDLs for high-speed communication.

3. Power Delivery and Efficiency
Challenge: Powering high-current chips without voltage drops or overheating.
Solutions:

• Integrated Voltage Regulators: Embedding regulators near the die (e.g., Intel’s PowerVia).
• Decoupling Capacitors: On-package capacitors stabilize power supply.
• Thick Copper Layers: Improve current-carrying capacity in substrates.
  Innovation: Samsung’s 2.5D packaging uses embedded voltage regulators for efficient power delivery.

4. Miniaturization and I/O Density
Challenge: Shrinking form factors demand higher pin counts in smaller areas.
Solutions:

• Advanced Packaging Techniques: Fan-out wafer-level packaging (FOWLP) and flip-chip enable dense interconnects.
• Redistribution Layers (RDLs): Thin-film layers route signals efficiently.
• Hybrid Bonding: Direct copper-to-copper bonding for micron-scale pitches.
  Industry Example: ASE’s FOEB (Fan-Out Embedded Bridge) achieves <2µm line spacing.

5. Mechanical Stress and Reliability
Challenge: CTE mismatch between materials induces stress, risking cracks and delamination.
Solutions:

• Underfill Materials: Epoxy resins absorb stress in flip-chip packages.
• CTE-Matched Substrates: Glass or organic substrates align thermal expansion with silicon.
• Flexible Substrates: Polyimide-based materials for bendable electronics.
  Innovation: Panasonic’s “Bendable” substrates for wearables withstand repeated flexing.

6. Cost and Yield Optimization
Challenge: Advanced packaging (e.g., 3D ICs) raises manufacturing costs.
Solutions:

• Panel-Level Packaging: Larger substrate formats reduce cost per unit.
• Process Automation: AI-driven defect detection improves yield.
• Standardization: Universal design rules (e.g., UCIe for chiplet interfaces) lower R&D costs.
  Industry Trend: OSATs like Amkor adopt panel-level FO packaging for cost-sensitive markets.

7. Environmental and Regulatory Compliance
Challenge: Restriction of Hazardous Substances (RoHS) mandates lead-free and eco-friendly materials.
Solutions:

• Green Materials: Biodegradable substrates and halogen-free flame retardants.
• Recycling Innovations: Chemical dissolution methods recover precious metals from e-waste.
  Example: IBM’s nanoparticle solder for lead-free, high-reliability interconnects.

8. Testing and Validation
Challenge: Complex 3D packages hinder defect detection.
Solutions:

• Advanced Metrology: 3D X-ray and acoustic microscopy for non-destructive inspection.
• Built-In Self-Test (BIST): On-die circuits validate functionality pre-packaging.
• Machine Learning: AI algorithms predict failures from process data.
  Innovation: Teradyne’s UltraFLEX platform supports high-throughput testing of 5G chips.

9. Heterogeneous Integration
Challenge: Integrating diverse chiplets (CPU, GPU, HBM) with varying process nodes.
Solutions:

• Chiplet Ecosystems: Standardized interfaces (UCIe) enable modular designs.
• Interposers: Silicon bridges connect chiplets with high-density interconnects.
  Industry Example: AMD’s Ryzen CPUs leverage chiplet architecture for scalable performance.

Future Trends

• Quantum Cooling: Emerging techniques like two-phase immersion cooling for data centers.
• Photonic Integration: Optical interconnects in packages to replace copper.
• Sustainable Practices: Circular economy models for packaging materials.

Conclusion
IC packaging is evolving rapidly to address the demands of AI, IoT, and high-performance computing. By leveraging material science, innovative designs, and smart manufacturing, the industry continues to overcome challenges, ensuring Moore’s Law extends into the next decade. Collaboration across academia, foundries, and OSATs will drive the next wave of packaging breakthroughs.
