What Are the Characteristics of An Ideal Silicon Diode

In electronic circuit design, diodes are fundamental components that allow current to flow unidirectionally. While real diodes exhibit complex behaviors, the concept of an ideal diode simplifies analysis by eliminating non-ideal characteristics. This article explores the defining features of an ideal silicon diode, contrasting them with real-world diodes and discussing their implications for circuit design.

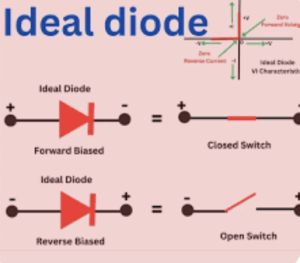

1. Zero Forward Voltage Drop (Vf = 0)

Ideal Behavior:
An ideal diode conducts current instantaneously when forward-biased, with no voltage drop across its terminals. This implies zero power loss (P = V × I = 0) during conduction.

Real-World Comparison:
Practical silicon diodes exhibit a forward voltage drop (~0.7 V) due to the energy required to overcome the semiconductor’s built-in potential barrier. This drop increases with current due to series resistance in the diode material.

Implications:
The ideal model simplifies calculations in circuits like rectifiers, where voltage losses are often negligible compared to supply voltages.

2. Infinite Reverse Resistance (No Leakage Current)

Ideal Behavior:
Under reverse bias, an ideal diode acts as a perfect insulator, allowing zero leakage current.

Real-World Comparison:
Real diodes have minor reverse leakage currents (nA to µA) due to minority carrier diffusion and surface effects. Leakage increases with temperature and reverse voltage.

Implications:
Ignoring leakage is valid for low-voltage applications but critical in high-impedance or precision circuits.

3. Instantaneous Switching (No Reverse Recovery Time)

Ideal Behavior:
The ideal diode transitions instantaneously between conducting (on) and non-conducting (off) states.

Real-World Comparison:
Real diodes exhibit reverse recovery time (trr), a delay caused by stored charge in the junction. This limits switching speed in high-frequency applications (e.g., switching power supplies).

Implications:
The ideal model is unsuitable for high-speed circuit analysis but useful for low-frequency or DC applications.

4. No Reverse Breakdown

Ideal Behavior:
An ideal diode withstands infinite reverse voltage without breakdown.

Real-World Comparison:
Silicon diodes have a breakdown voltage (e.g., Zener or avalanche), beyond which reverse current spikes, potentially damaging the device.

Implications:
Designers must account for breakdown in real circuits, but the ideal model assumes perfect reverse blocking.

5. No Junction Capacitance

Ideal Behavior:
The ideal diode has zero junction capacitance, enabling operation at any frequency.

Real-World Comparison:
Real diodes exhibit junction capacitance (pF to nF) due to the depletion region, which limits high-frequency performance.

Implications:
This simplification ignores capacitive effects critical in RF and fast-switching circuits.

6. Temperature Independence

Ideal Behavior:
Parameters like forward voltage and leakage current remain constant regardless of temperature.

Real-World Comparison:
Real diodes are temperature-sensitive: forward voltage decreases (~2 mV/°C), and leakage current doubles every ~10°C rise.

Implications:
Thermal effects are vital for reliability but omitted in ideal models for simplicity.

7. No Power Dissipation

Ideal Behavior:
Power dissipation (P = V × I) is zero in both forward and reverse bias.

Real-World Comparison:
Real diodes dissipate power as heat during conduction (Vf × I) and in reverse leakage (Vr × Ir).

Implications:
Thermal management is unnecessary in ideal models but essential for real devices.

8. No Noise Generation

Ideal Behavior:
The ideal diode produces no thermal or shot noise.

Real-World Comparison:
Real diodes generate noise due to carrier recombination and thermal agitation, affecting sensitive analog circuits.

Implications:
Noise analysis requires realistic models, especially in amplifiers and communication systems.

9. Unlimited Forward Current Handling

Ideal Behavior:
An ideal diode can conduct infinite current without damage.

Real-World Comparison:
Real diodes have maximum forward current ratings (IF(max)) beyond which thermal runaway destroys the junction.

Implications:
Circuit protection (e.g., fuses) is unnecessary in ideal models but critical in practice.

Applications of the Ideal Diode Model

The ideal diode simplifies:

• Rectifier circuits: AC-to-DC conversion.

• Logic gates: Diode-resistor logic.

• Protection circuits: Reverse polarity protection.

• Educational purposes: Teaching basic diode behavior.

Limitations and Real-World Considerations

While the ideal model streamlines analysis, designers must account for:

• Voltage drops affecting low-voltage circuits.

• Switching delays in high-frequency applications.

• Thermal and breakdown limits for reliability.

Conclusion
The ideal silicon diode is a theoretical construct characterized by perfect conduction, insulation, and instantaneous switching. While invaluable for simplifying circuit analysis, real-world design demands consideration of non-ideal behaviors. Understanding both models equips engineers to balance simplicity with accuracy in electronic systems.
