Everything you need to know about dpdt switch

1. Introduction

A Double Pole Double Throw (DPDT) switch is a fundamental component in electronics and electrical systems, offering versatility for controlling multiple circuits. This guide explores its structure, operation, applications, and selection criteria.

2. What is a DPDT Switch?
A DPDT switch is an electromechanical device with two independent circuits (poles) and two conductive paths (throws) per pole. Each pole can connect to one of two terminals, allowing simultaneous control of two separate circuits. It’s an extension of the SPDT (Single Pole Double Throw) switch, doubling its capacity.

Comparison with Other Switches

• SPST: Single circuit, two terminals (on/off).

• SPDT: Single circuit, three terminals (diverts current between two paths).

• DPST: Controls two circuits but only offers on/off functionality.

• DPDT: Combines two SPDT switches, enabling complex routing for two circuits.

3. Internal Configuration and Terminals

• Terminals: Six terminals total—two common (COM1, COM2) and four throws (two per pole).

• Layout: Typically arranged in two rows of three terminals. For example:

  • COM1 connected to either Throw 1A or 1B.

  • COM2 connected to either Throw 2A or 2B.

• Isolation: Poles are electrically isolated, allowing control of different voltages or signals.

4. How Does a DPDT Switch Work?

• Operation: Actuating the switch toggles both poles simultaneously. Each COM terminal connects to one of its two throws, changing the circuit path.

• Schematic Symbol: Two SPDT symbols linked by a dashed line, indicating mechanical coupling.

5. Types of DPDT Switches

• Latching: Maintains position until manually toggled (e.g., standard light switches).

• Momentary: Returns to default when released (e.g., keyboard keys).

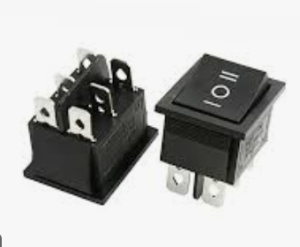

• Actuator Styles: Toggle, rocker, slide, or rotary, suited for different panel designs.

• Center-Off: Adds a neutral position (on-off-on), useful for stopping motors mid-operation.

6. Applications

• Motor Control: Reverses DC motor polarity by swapping connections.

• Audio Systems: Switches between stereo channels or input sources.

• Lighting: Controls two independent lights or dimmer circuits.

• Industrial Equipment: Selects power sources or operational modes.

• H-Bridge Circuits: Enables bidirectional motor control (combined with other components).

7. Wiring Examples

• Polarity Reversal:

  1. Connect power supply (+) to COM1 and (-) to COM2.

  2. Attach motor leads to Throw 1A/2A and Throw 1B/2B.

  3. Flipping the switch swaps motor terminals, reversing direction.

• Dual Circuit Control: Use each pole independently to manage two devices (e.g., lights and fans).

8. Technical Specifications

• Voltage/Current Ratings: Common ratings include 125VAC/6A; industrial switches may handle higher loads.

• Contact Materials: Silver (high conductivity), gold-plated (low-current signals).

• Lifespan: 10,000–100,000 cycles, depending on usage and quality.

• Mounting: Panel, PCB, or DIN rail mounts.

9. Safety Considerations

• Ratings: Never exceed voltage/current limits.

• Inductive Loads: Use snubber circuits or relays to mitigate arcing in motors/coils.

• Environmental: Choose sealed switches for damp or dusty environments.

10. Troubleshooting

• Testing: Use a multimeter to check continuity between COM and throws in both positions.

• Common Issues: Loose connections, worn contacts, or physical damage.

• Solutions: Tighten terminals, clean contacts with alcohol, or replace the switch.

11. Choosing the Right DPDT Switch

• Load Requirements: Match voltage/current to application needs.

• Actuator Type: Toggle for industrial panels, slide for compact devices.

• Environment: Opt for waterproof or dustproof models if needed.

• Functionality: Decide between latching, momentary, or center-off.

12. Conclusion
DPDT switches are indispensable for complex circuit control, offering flexibility in motor control, audio systems, and industrial setups. Understanding their configuration, applications, and safety ensures optimal use. When selecting a switch, prioritize specifications, environmental factors, and operational requirements to achieve reliable performance.

This guide equips you with the knowledge to leverage DPDT switches effectively, enhancing your electrical and electronic projects.
