Everything you need to know about electronic ballast

1. Introduction to Electronic Ballasts

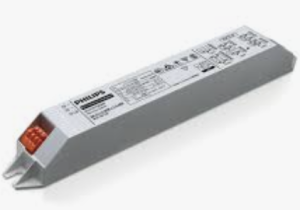

An electronic ballast is a device used to regulate the current supplied to gas-discharge lamps, such as fluorescent and high-intensity discharge (HID) lamps. Unlike traditional magnetic ballasts, electronic ballasts use solid-state circuitry to optimize lamp performance, offering improved efficiency, reduced noise, and enhanced control. They have largely replaced magnetic ballasts in modern lighting systems due to their technological advantages.

2. Working Principle

Basic Operation

Electronic ballasts convert incoming alternating current (AC) to direct current (DC) and then back to high-frequency AC (typically 20–60 kHz). This high-frequency operation eliminates visible flicker and improves efficiency.

Key Components

• Rectifier: Converts AC to DC.

• Filter: Smoothes the DC output.

• Inverter: Converts DC to high-frequency AC using transistors or MOSFETs.

• Control Circuitry: Manages lamp ignition, dimming, and protection features (e.g., overheating, short-circuit).

3. Types of Electronic Ballasts

4. Advantages Over Magnetic Ballasts

• Energy Efficiency: 20–30% lower energy consumption due to reduced heat loss.

• Longer Lamp Life: Gentle starting mechanisms reduce electrode wear.

• Noise Reduction: No humming (common in magnetic ballasts).

• Dimming Capability: Compatible with dimmer switches for adjustable lighting.

• Lightweight Design: Compact and easier to install.

5. Applications

• Commercial/Office Lighting: T8/T5 fluorescent tubes in ceilings.

• Residential: Compact fluorescent lamps (CFLs).

• Industrial: High-bay fixtures in warehouses.

• Healthcare/Schools: Flicker-free environments reduce eye strain.

6. Key Features and Considerations

• Dimming: Requires compatible ballast and dimmer switch.

• Compatibility: Ensure ballast matches lamp type (e.g., T5, T8).

• Power Factor Correction (PFC): Active PFC reduces reactive power, improving efficiency.

• Total Harmonic Distortion (THD): High-quality ballasts maintain THD <10% to prevent grid interference.

7. Installation and Maintenance Tips

• Wiring: Follow manufacturer diagrams; newer models may require no neutral wire.

• Thermal Management: Ensure proper ventilation to avoid overheating.

• Testing: Use a multimeter to check output voltage if lamps fail.

8. Troubleshooting Common Issues

• Lamp Flicker: Replace old lamps or check ballast connections.

• Buzzing Noise: Indicates failing ballast; replace promptly.

• No Light Output: Test ballast with a known-working lamp.

9. Standards and Regulations

• ENERGY STAR: Certifies energy-efficient models.

• UL/CSA/IEC: Safety compliance for electrical components.

• RoHS: Restricts hazardous substances (e.g., lead).

10. Future Trends

While LED technology is rising, electronic ballasts remain critical for existing fluorescent systems. Innovations include:

• Smart Ballasts: IoT integration for adaptive lighting.

• Hybrid Systems: Compatibility with LED retrofits.

11. Conclusion

Electronic ballasts revolutionized lighting with efficiency, durability, and advanced features. Though LEDs are gaining traction, electronic ballasts continue to play a vital role in commercial and industrial settings. Understanding their operation, types, and benefits ensures optimal lighting system design and maintenance.
