What Is Electronic Diode?The Ultimate Guide

An electronic diode is a fundamental semiconductor device that allows current to flow in one direction while blocking it in the opposite direction. This property, known as rectification, makes diodes indispensable in modern electronics. This guide explores their working principles, types, applications, and future trends.

How Does a Diode Work?

The P-N Junction

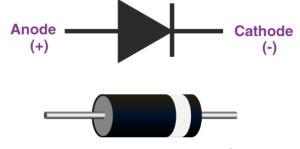

A diode consists of a P-N junction, formed by bonding P-type (positive, hole-rich) and N-type (negative, electron-rich) semiconductors. At the junction, electrons and holes recombine, creating a depletion region that acts as a barrier to current flow.

Biasing Conditions

• Forward Bias: Positive voltage applied to the anode (P-side) and negative to the cathode (N-side) reduces the depletion region, enabling current flow.
  • Forward Voltage Drop: ~0.7V for silicon, ~0.3V for germanium.
• Reverse Bias: Reverse voltage widens the depletion region, blocking current. Excessive reverse voltage causes breakdown ( non-destructive in Zener diodes) .

V-I Characteristics

The diode’s current-voltage curve shows:

• Forward Conduction: Rapid current increase after the threshold voltage.
• Reverse Saturation: Minimal leakage current.
• Breakdown Region: Sudden current spike at reverse breakdown voltage.

Types of Diodes

1. Rectifier Diodes:
   • Convert AC to DC in power supplies.
   • High current capacity (e.g., 1N4007).
2. Zener Diodes:
   • Designed for reverse-bias voltage regulation (e.g., 3.3V, 5V).
   • Utilizes Zener/avalanche breakdown.
3. Light-Emitting Diodes (LEDs):
   • Emit light when forward-biased.
   • Colors vary with materials (e.g., GaAs for red).
4. Schottky Diodes:
   • Metal-semiconductor junction offers low forward voltage (~0.3V).
   • Fast switching for SMPS and RF.
5. Photodiodes:
   • Generate current under light (reverse bias).
   • Used in sensors and solar cells (photovoltaic mode).
6. Varactor Diodes:
   • Capacitance varies with reverse voltage.
   • Tuning circuits in radios.
7. Tunnel Diodes:
   • Quantum tunneling enables negative resistance.
   • High-frequency oscillators.
8. Gunn Diodes:
   • Microwave frequencies without PN junctions.
   • Radar and comms.
9. PIN Diodes:
   • Intrinsic layer for RF switching/attenuation.
   • Used in telecom.
10. Laser Diodes :
    • Coherent light emission.
    • Fiber optics and CD/DVD drives.
11. TVS Diodes:
    • Protect against voltage surges (e.g., lightning).

Key Parameters

• Forward Voltage (Vf): Voltage drop during conduction.
• Peak Inverse Voltage (PIV): Max reverse voltage tolerated.
• Reverse Recovery Time (trr): Switching speed (critical in rectifiers).
• Leakage Current (Ir): Small current in reverse bias.
• Package: DO-41 (through-hole), SOD-123 (SMD).

Applications

• Power Supplies: Bridge rectifiers convert AC to DC.
• Signal Demodulation: Extract audio in AM/FM radios.
• Voltage Regulation: Zener diodes stabilize voltages.
• Lighting: LEDs in displays and bulbs.
• Protection: TVS diodes guard against surges.
• Wave Shaping: Clipping/clamping circuits in signal processing.

History

• 1904: Fleming valve (vacuum tube diode).
• 1906: Crystal detectors (cat’s whisker diodes).
• 1940s: PN junction theory (Russell Ohl).
• Modern Era: Silicon dominance and specialized diodes.

Testing & Troubleshooting

• Multimeter Test:
  • Forward bias: Low resistance (~0.7V for Si).
  • Reverse bias: “OL” (open loop).
• Common Issues:
  • Shorted Diode: Conducts in both directions.
  • Open Diode: No conduction.

Future Trends

• Advanced Materials: GaN and SiC for high-power/frequency.
• Miniaturization: Nano-diodes for wearables.
• Integration: Diodes in complex ICs for IoT/AI.

Conclusion

Diodes are pivotal in electronics, enabling functions from power conversion to signal processing. Understanding their types and applications is crucial for designing efficient circuits. As technology evolves, diodes will continue to underpin innovations in energy, communication, and computing.
