Everything You Need to Know About eMMC IC: A Comprehensive Guide

Embedded MultiMediaCard (eMMC) is a cornerstone of modern storage solutions in consumer electronics, offering a blend of affordability, integration, and reliability. This guide explores its architecture, applications, and future, providing a detailed understanding of why eMMC remains prevalent in devices like smartphones, IoT gadgets, and automotive systems.

What is eMMC?

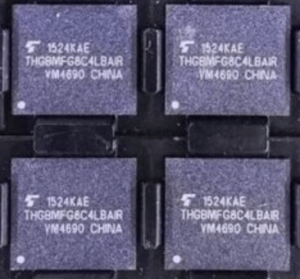

eMMC (embedded MultiMediaCard) is a JEDEC-standard storage solution combining NAND flash memory and a flash controller in a single integrated circuit ( IC). Introduced in 2006, it simplifies design for manufacturers by integrating hardware and firmware, managing tasks like wear leveling and error correction internally. Unlike removable storage (e.g., SD cards), eMMC is soldered directly onto device motherboards, making it ideal for compact, embedded systems.

Architecture of eMMC

1. NAND Flash Memory

• Non-volatile Storage: Retains data without power, using SLC, MLC, or TLC NAND types.
• Structure: Organized into blocks and pages, managed by the controller for efficient operations.

2. Flash Memory Controller

• Functions: Manages read/write operations, wear leveling, bad block management, error correction ( ECC), and interface protocols.
• Enhancements: Extends NAND lifespan and ensures data integrity.

3. Interface

• 8-bit Parallel Bus: Utilizes legacy MMC interfaces with enhancements like HS400 mode (DDR, 200 MHz) for speeds up to 400 MB/s.
• Versions:
  • eMMC 4.5: Up to 200 MB/s (HS200).
  • eMMC 5.1: Command queue optimizations, maintaining 400 MB/s throughput.

Advantages of eMMC

• Integration: Reduces design complexity with a single-chip solution.
• Cost-Effective: Cheaper than SSDs, ideal for budget devices.
• Reliability: Built-in controller enhances data management.
• Low Power Consumption: Suitable for battery-powered devices.
• Standardization: Simplifies driver development across platforms.

Limitations

• Performance: Lower speeds compared to UFS/SSDs (e.g., UFS 3.1 offers ~2.1 GB/s).
• Lifespan: Limited write cycles, though mitigated by wear leveling.
• Capacity: Typically up to 256GB, though 512GB variants exist.
• Non-Upgradeable: Soldered design complicates replacement.

Applications

• Mobile Devices: Smartphones (e.g., budget Android models), tablets.
• IoT: Smart home devices, wearables.
• Automotive: Infotainment, telematics (AEC-Q100 qualified for durability).
• Consumer Electronics: Smart TVs, set-top boxes.
• Industrial: Embedded systems requiring stable storage.

Comparison with Other Storage Technologies

The Future of eMMC

While UFS and NVMe dominate high-performance sectors, eMMC thrives in cost-sensitive and low-power applications. Innovations like higher capacities (512GB) and security features (hardware encryption in eMMC 5.0+) sustain its relevance. However, its market share may decline in premium segments as UFS becomes affordable.

Conclusion

eMMC remains a vital solution for embedded storage, balancing cost, performance, and ease of integration. Despite competition from faster technologies, its role in budget devices, IoT, and automotive applications ensures ongoing relevance. Understanding eMMC’s strengths and limitations helps in selecting the right storage for diverse engineering needs.
