Everything You Need to Know About EPROM ICs: A Comprehensive Guide

EPROM (Erasable Programmable Read-Only Memory) is a type of non-volatile memory chip that revolutionized firmware storage in early computing systems. Unlike standard ROM, EPROMs can be reprogrammed after erasure using ultraviolet (UV) light, making them ideal for prototyping and iterative development. This guide explores their history, structure, applications, and legacy.

History of EPROM

Invented by Dov Frohman at Intel in 1971, the first commercially successful EPROM was the 1702 (2 KB capacity). Its introduction addressed the need for reusable memory in embedded systems, microcontrollers, and early computers. Later models like the 2708 (8 KB) and 27C series (CMOS-based) improved density and power efficiency. EPROMs dominated the market until electrically erasable alternatives (EEPROM, Flash) emerged in the 1990s.

Structure and Working Principle

Physical Architecture

• Floating Gate Transistor: The core of an EPROM cell. A MOSFET with an additional insulated gate that traps electrons.

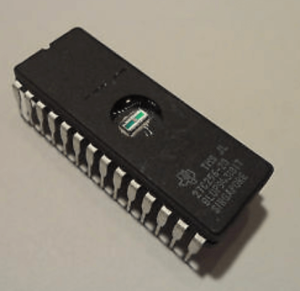

• Quartz Window: A transparent window on the chip package allowing UV light to erase data.
• Memory Array: Organized in rows and columns, with each cell representing a bit (1 or 0).

Data Storage Mechanism

1. Programming:
   • A high voltage (12–21 V) is applied to the control gate, inducing hot-electron injection. Electrons tunnel through the oxide layer and become trapped on the floating gate, raising the transistor’s threshold voltage. This state represents a logical 0.
2. Reading:
   • A lower voltage is applied. If the floating gate is charged, the transistor won’t conduct, registering a 0. An uncharged gate allows conduction, reading a 1.
3. Erasure:
   • UV light (253.7 nm wavelength) ionizes the oxide layer, releasing trapped electrons. This resets all bits to 1 after ~20–30 minutes of exposure.

Applications

EPROMs were widely used in:

• Microcontrollers and BIOS: Storing firmware in early PCs (e.g., IBM PC BIOS).
• Embedded Systems: Industrial machines, automotive controls, and medical devices.
• Gaming: Prototype cartridges for consoles like Nintendo NES.
• Telecommunications: Modems and networking equipment.

Comparison with Other Memory Types

Key Differences:

• EPROM requires physical removal for erasure, while EEPROM/Flash allow in-circuit updates.
• EPROM’s limited endurance makes it unsuitable for frequent rewrites.

Advantages and Disadvantages

Pros

• Non-volatile: Retains data without power.
• Reprogrammable: Reusable for development and testing.
• High Reliability: Long-term data retention (10+ years).

Cons

• Slow Erasure: Requires UV exposure and specialized equipment.
• Fragile Package: Quartz window increases cost and sensitivity.
• Limited Endurance: ~1,000 erase cycles.

Technical Specifications

• Density: Ranged from 2 KB (1702) to 1 MB (27010).
• Voltage:
  • Vcc: 5 V (CMOS) or 5–6 V (NMOS).
  • Programming (Vpp): 12–21 V.
• Access Time: 45–250 ns (varies by model).
• Package: Ceramic DIP with quartz window (OTP versions lack the window).

Popular Models

Programming and Erasure

Programming Process

1. Hardware: Use an EPROM programmer (e.g., TL866).
2. Algorithm: Apply Vpp pulses to target addresses. Verify data post-write.

Erasure Guidelines

• UV Lamp: 253.7 nm wavelength, 15–30 minutes exposure.
• Safety: Avoid direct UV exposure to skin/eyes.

Handling Tips

• Cover the quartz window with opaque tape post-programming.
• Avoid static discharge; store in anti-static packaging.

Modern Status and Legacy

EPROMs are largely obsolete, replaced by Flash and EEPROM. However, they remain relevant in:

• Legacy Systems: Maintenance of aging industrial hardware.
• Hobbyist Projects: Retro computing and vintage gaming.
• OTP Applications: Cost-effective one-time programmable chips for finalized firmware.

Conclusion

EPROMs played a pivotal role in the evolution of memory technology, enabling reprogrammable firmware storage for decades. While surpassed by modern alternatives, their design principles underpin today’s non-volatile memories. For engineers and hobbyists, understanding EPROMs offers insights into the foundations of embedded systems and memory innovation.
