Everything You Need to Know About Laser Module: A Comprehensive Guide

Laser modules are compact, integrated devices that generate coherent, focused light beams through stimulated emission. Widely used across industries, they offer precision and versatility. This guide explores their components, types, applications, selection criteria, safety, maintenance, and future trends.

1. Basics of Laser Modules

1.1 Definition

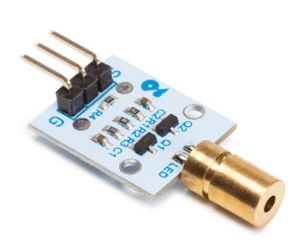

A laser module combines a laser diode, driver circuit, optics, and thermal management in a housing, producing a directed beam for specific tasks.

1.2 Key Components

• Laser Diode: Semiconductor emitting light via electron recombination (e.g., GaAs for infrared).
• Driver Circuit: Regulates current to ensure stable operation; includes modulation for pulsed/continuous output.
• Optics: Lenses collimate the beam; mirrors in the optical cavity enhance coherence.
• Thermal Management: Heat sinks, thermoelectric coolers (TECs), or fans prevent overheating.
• Housing: Protects components and ensures safety with interlocks.

1.3 Working Principle

• Stimulated Emission: Photons stimulate excited electrons to emit coherent light (Einstein’s theory).
• Population Inversion: Achieved by pumping energy into the gain medium (diode or crystal).
• Optical Cavity: Mirrors reflect photons, amplifying light into a coherent beam.

2. Types of Laser Modules

2.1 By Wavelength

• Visible (400–700 nm): Red (650 nm), green (532 nm DPSS), blue (450 nm diodes) for pointers and displays.
• Infrared (>700 nm): 808 nm diodes for pumping; 10.6 μm CO₂ for cutting plastics.
• Ultraviolet (<400 nm): Excimer lasers (e.g., 193 nm) for semiconductor lithography.

2.2 By Power Output

• Low-Power (<1W): Laser pointers, barcode scanners.
• Medium-Power (1–50W): Engraving, minor welding.
• High-Power (>50W): Industrial cutting (fiber lasers), defense.

2.3 By Application

• Diode-Pumped Solid-State (DPSS): Frequency-doubled crystals for green/blue beams.
• Fiber Lasers: Yb-doped fibers for high-power industrial use.
• Gas Lasers: CO₂ modules for engraving wood/acrylic.

3. Applications

• Manufacturing: Fiber lasers cut metals; CO₂ lasers engrave polymers.
• Medical: Excimer lasers in LASIK; diode lasers for dermatology.
• Communications: Laser diodes in fiber optics (1550 nm for low-loss transmission).
• Consumer Electronics: Blu-ray drives (405 nm violet diodes).
• Research: Ti-sapphire lasers in spectroscopy.
• Defense: LiDAR in autonomous vehicles; rangefinders.

4. Choosing the Right Laser Module

• Wavelength: Match material absorption (e.g., metals absorb 1 μm fiber lasers well).
• Power: Engraving paper (5W), cutting steel (1kW+).
• Beam Quality (M²): Low M² for precision tasks like microscopy.
• Cooling: TECs for stable low-power; water cooling for high-power.
• Safety Compliance: FDA Class 1 (enclosed systems) vs. Class 4 (interlock requirements).
• Cost: Balance budget with performance (e.g., DPSS vs. direct diodes).

5. Safety Considerations

• Hazards: Eye damage (retinal burns), skin injuries.
• Protection: Use OD-rated eyewear; install beam shutters.
• Regulations: FDA 21 CFR (US), IEC 60825 (global). Class 3B/4 require controlled access.

6. Installation & Maintenance

• Installation: Secure mounting; align optics using alignment tools.
• Maintenance: Clean optics with IPA; monitor diode lifespan (typically 10,000–50,000 hours).
• Troubleshooting: Address mode hopping (stabilize temperature), power drops (check diode degradation).

7. Future Trends

• Miniaturization: VCSELs in smartphones for facial recognition.
• Higher Power: Advances in cooling for kW-level modules.
• Smart Integration: IoT-enabled modules for predictive maintenance.
• Emerging Applications: Quantum computing (entangled photons), LiDAR in drones.

Conclusion

Laser modules are pivotal in modern technology, offering tailored solutions across sectors. Understanding their components, types, and safety ensures optimal use. As advancements in miniaturization and AI integration unfold, their role will expand, driving innovation in fields from manufacturing to quantum computing.
