How To Choose an Electronic Capacitor: The Ultimate Guide

Choosing the right capacitor is critical for the performance, reliability, and longevity of electronic circuits. This guide provides a comprehensive overview of the factors, types, and applications to help you make an informed decision.

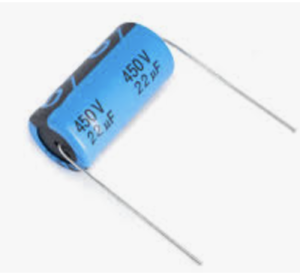

1. Introduction to Capacitors

Capacitors are passive electronic components that store and release electrical energy. They are essential in filtering, timing, coupling, and decoupling applications. Understanding their parameters and types is crucial for optimal circuit design.

2. Key Factors in Choosing a Capacitor

2.1 Capacitance Value

• Definition: The amount of charge a capacitor can store, measured in farads (F).
• Considerations: Match the circuit’s required value, often derived from formulas (e.g. ,  C=I⋅ΔtΔV C = Δ V I ⋅ Δ t ​  for power supply ripple) .

2.2 Voltage Rating

• Working Voltage: The maximum voltage a capacitor can handle without risk of breakdown. Always choose a rating 1.5–2x higher than the circuit’s peak voltage.
• Surge Voltage: Temporary voltage spikes; ensure the capacitor can withstand these.

2.3 Tolerance

• Definition: The permissible deviation from the stated capacitance value (e.g., ±10%).
• Applications: Tight tolerance (±1–5%) for timing circuits; looser (±20%) for decoupling.

2.4 Equivalent Series Resistance (ESR)

• Impact: High ESR causes power loss and heating. Critical in switching power supplies and high-frequency circuits.
• Low-ESR Options: Ceramic, film, and tantalum capacitors.

2.5 Temperature Stability

• Temperature Coefficient: How capacitance changes with temperature (e.g., X7R ceramics vs. NP0/C0G for stable performance).
• Operating Range: Ensure the capacitor functions within your circuit’s temperature limits.

2.6 Polarization

• Polarized Capacitors: Electrolytic and tantalum types. Never use in AC circuits without a DC bias.
• Non-Polarized: Ceramic, film, and supercapacitors for AC/DC applications.

2.7 Size and Mounting

• Physical Constraints: Surface-mount (SMT) for compact designs; through-hole for prototyping.
• Footprint: Match PCB layout requirements.

2.8 Cost and Availability

• Trade-offs: High-performance capacitors (e.g., silver mica) cost more. Balance budget with project needs.

3. Types of Capacitors and Their Properties

4. Capacitor Applications

• Decoupling: Ceramic capacitors (low ESR, high frequency).
• Power Filtering: Aluminum electrolytic (high capacitance).
• Timing Circuits: NP0/C0G ceramics or film (stable capacitance).
• Motor Drives: Film capacitors (high voltage, self-healing).
• Energy Storage: Supercapacitors (rapid charge/discharge).

5. Step-by-Step Selection Process

1. Define Requirements: Capacitance, voltage, temperature range.
2. Choose Type: Based on application (e.g., ceramic for decoupling).
3. Check ESR/Ripple Current: Critical for power circuits.
4. Verify Size/Mounting: Ensure fit on PCB.
5. Review Cost and Lifespan: Electrolytics degrade faster.
6. Test Prototypes: Validate performance under real conditions.

6. Common Mistakes to Avoid

• Polarity Reversal: Destroying polarized capacitors.
• Ignoring ESR: Overheating in switching regulators.
• Voltage Margins: Insufficient derating leading to failure.
• Temperature Neglect: Using a capacitor outside its rated range.
• Overlooking Leakage Current: Critical in high-impedance circuits.

7. Conclusion

Selecting the right capacitor involves balancing electrical requirements, physical constraints, and cost. Always consult datasheets, consider environmental factors, and test thoroughly. With this guide, you can confidently choose capacitors tailored to your project’s needs.
