How To Choose An Electronic Diode: The Ultimate Guide

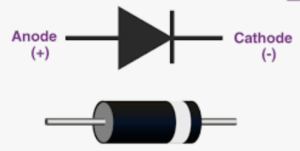

Electronic diodes are fundamental components in modern electronics, acting as one-way valves for current. Selecting the right diode ensures optimal performance, efficiency, and reliability in your circuit. This guide explores diode types, critical parameters, application-specific considerations, and common pitfalls to help you make informed decisions.

Types of Diodes and Their Applications

1. Rectifier Diodes

• Description: Standard diodes for converting AC to DC.
• Key Features: High current/voltage ratings, moderate speed.
• Applications: Power supplies, battery chargers.
• Examples: 1N400x series, 1N540x series.

2. Zener Diodes

• Description: Designed for voltage regulation in reverse bias.
• Key Features: Precise breakdown voltage (Vz), low power handling.
• Applications: Voltage reference, surge protection.
• Examples: BZX55, 1N47xx series.

3. Schottky Diodes

• Description: Low forward voltage (0.2–0.4V) and fast switching.
• Key Features: Minimal power loss, high efficiency.
• Applications: High-frequency circuits, switching power supplies.
• Examples: 1N5817, BAT54.

4. Light-Emitting Diodes (LEDs)

• Description: Emit light when forward-biased.
• Key Features: Color-specific forward voltages (1.8–3.3V).
• Applications: Indicators, displays, lighting.

5. Photodiodes

• Description: Generate current when exposed to light (reverse bias).
• Key Features: High sensitivity, fast response.
• Applications: Optical communication, light sensors.

6. Fast Recovery/Ultrafast Diodes

• Description: Optimized for quick reverse recovery (ns range).
• Key Features: Low switching losses.
• Applications: Inverters, PWM circuits.

7. TVS Diodes (Transient Voltage Suppression)

• Description: Protect circuits from voltage spikes.
• Key Features: High surge capacity, fast response.
• Applications: ESD protection, automotive systems.

8. Varactor Diodes

• Description: Capacitance varies with reverse voltage.
• Key Features: Tuned for RF applications.
• Applications: Voltage-controlled oscillators, tuners.

9. Avalanche Diodes

• Description: Designed to withstand reverse breakdown.
• Key Features: Robust surge handling.
• Applications: High-voltage protection.

Key Electrical Parameters

1. Forward Voltage (Vf)

• Impact: Lower Vf (e.g., Schottky) reduces power loss.
• Typical Range: 0.2V (Schottky) to 3.3V (LEDs).

2. Reverse Voltage (Vr)

• Rule of Thumb: Choose Vr ≥ 1.5× circuit’s max reverse voltage.

3. Forward Current (If)

• Critical For: Power dissipation (P = Vf × If). Exceeding If risks thermal failure.

4. Reverse Recovery Time (trr)

• Importance: Critical for high-speed switching (e.g., <50ns for ultrafast diodes).

5. Power Dissipation (Pd)

• Thermal Management: Use heat sinks if Pd exceeds package limits.

6. Junction Temperature (Tj)

• Limit: Typically 150°C–175°C. Derate parameters at high temps.

7. Capacitance (Cj)

• Relevance: Affects high-frequency performance (e.g., RF circuits).

8. Reverse Leakage Current (Ir)

• Consideration: Critical for low-power/battery circuits.

Application-Specific Selection

1. Power Supplies

• Type: Rectifier diodes (1N4007 for 1A, 1N5408 for 3A).
• Parameters: High Vr (≥50V) and If (≥1.5× load current).

2. Voltage Regulation

• Type : Zener diodes ( BZX85C for 1W+).
• Parameters: Match Vz to desired output; consider power rating.

3. High-Speed Circuits

• Type: Schottky (BAT54) or ultrafast diodes (UF4007).
• Parameters: Low trr (<50ns), low Cj.

4. RF/Communication

• Type: PIN or varactor diodes.
• Parameters: Variable capacitance, low noise.

5. Optoelectronics

• LEDs: Match color and Vf to driver circuit.
• Photodiodes: Use with amplifiers for sensitivity.

Practical Considerations

1. Thermal Management
   • Calculate Pd and use heat sinks or thermal pads if needed.
   • Check thermal resistance (Rθja) in datasheets.
2. Cost vs. Performance
   • Schottky diodes cost more but improve efficiency.
   • Standard rectifiers are economical for low-frequency uses.
3. Packaging
   • Through-hole (DO-41) vs. SMD (SOD-123).
   • Mechanical stress and PCB space constraints.
4. Reliability Standards
   • Automotive: AEC-Q101 qualified diodes.
   • Industrial: High-temperature tolerance.
5. Datasheet Analysis
   • Verify absolute maximum ratings and derating curves.

Common Mistakes to Avoid

• Ignoring Reverse Recovery Time: Causes inefficiency in high-speed circuits.
• Overlooking Pd: Leads to thermal runaway.
• Insufficient Vr Margin: Risk of diode breakdown under transients.
• Mismatched Forward Current: Results in premature failure.

Diode Selection Checklist

1. Define application (rectification, switching, etc.).
2. Calculate required Vr, If, and Pd.
3. Choose type based on speed/temperature needs.
4. Verify package and thermal requirements.
5. Check datasheet for derating and reliability.

Conclusion

Selecting the right diode involves balancing electrical parameters, application needs, and practical constraints. By understanding diode types, key specs, and common pitfalls, you can optimize performance and durability in your designs. Always consult datasheets and consider real-world operating conditions to ensure success.
