Everything You Need To Know About Ice Cube Relay

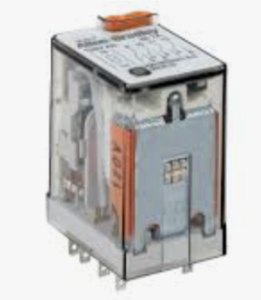

Ice cube relays are compact, modular electromechanical relays widely used in industrial control systems. Named for their resemblance to ice cubes in size and shape, these relays are prized for their reliability, ease of installation, and versatility. They function as switches controlled by an electrical signal, enabling the management of higher-power circuits through low-power inputs.

2. History and Development
The term “ice cube relay” originated in the mid-20th century, popularized by Allen-Bradley (now part of Rockwell Automation). Their standardized design revolutionized industrial automation by offering a modular, socket-based solution that reduced downtime. Over time, brands like Siemens, Omron, and Schneider Electric adopted similar designs, cementing their role in control systems.

3. Design and Components

• Frame: A thermoplastic (e.g., polycarbonate) housing providing durability and insulation.

• Coil: Electromagnetic wire wound around a core, activated by a control voltage (12V DC to 240V AC).

• Contacts: Silver alloy or silver cadmium oxide tips for conductivity and arc resistance. Configurations include SPST, SPDT, DPST, and DPDT.

• Armature: A movable iron piece that shifts contacts when the coil is energized.

• Terminals: Plug-in or screw-type connections for easy wiring.

• Socket: A base allowing tool-free replacement, often with LED indicators for status monitoring.

4. Working Principle
When voltage is applied to the coil, it generates a magnetic field, pulling the armature to close or open contacts. This action either completes or interrupts the circuit connected to the relay’s load terminals. De-energizing the coil releases the armature, resetting the contacts via a spring.

5. Types and Configurations

• Contact Arrangements: SPST (single-pole single-throw) to DPDT (double-pole double-throw).

• Coil Voltages: Standard options include 12V, 24V, 120V, and 240V.

• Latching Relays: Maintain state without continuous coil power.

• Time-Delay Relays: Activate/deactivate after a preset interval.

• High-Capacity Models: Handle up to 15A at 480V AC for specific applications.

6. Applications

• Industrial Automation: Motor control, conveyor systems, and machinery.

• HVAC Systems: Compressor and fan control.

• Control Panels: Signal routing and safety interlocking.

• Lighting Systems: Switching high-intensity lights.

7. Advantages and Disadvantages

• Pros: Modularity, easy replacement, wide voltage compatibility, and durability (mechanical life up to 10 million cycles).

• Cons: Limited to moderate current/voltage vs. contactors; mechanical wear over time.

8. Technical Specifications

• Contact Rating: Typically 5–10A at 120–240V AC.

• Insulation Resistance: >100MΩ.

• Operational Temperature: -40°C to +85°C.

• Mechanical Life: 5–10 million operations.

• Electrical Life: 100,000–500,000 cycles, depending on load.

9. Installation and Maintenance

• Installation: Mounted on DIN rails or panels via socket bases. Wiring follows NEC/IEC standards.

• Maintenance: Inspect contacts for pitting/arcing, test coil resistance, and ensure secure connections. Surge suppressors protect coils from voltage spikes.

10. Modern Alternatives and Relevance
While solid-state relays (SSRs) and PLCs offer silent, wear-free operation, ice cube relays remain favored for simplicity, cost-effectiveness, and tolerance to voltage transients. They coexist with modern tech in hybrid systems.

11. Safety Considerations

• Use within rated specifications to prevent overheating.

• Isolate coils and contacts properly.

• Integrate fuses/circuit breakers for overcurrent protection.

12. Conclusion
Ice cube relays are a cornerstone of industrial control, balancing modularity, reliability, and ease of use. Despite advancements, their adaptability ensures continued relevance in diverse applications. Understanding their design and proper use maximizes system efficiency and longevity.

Additional Resources

• Manufacturers: Allen-Bradley, Omron, Siemens, Schneider Electric.

• Standards: UL 508, IEC 61810, RoHS.

• Accessories: Diode modules, socket bases (e.g., Allen-Bradley 700-HN).

This comprehensive guide equips engineers and technicians with essential knowledge to leverage ice cube relays effectively in modern control systems.
