The Knock Sensor: A Guardian of Engine Health and Performance

In the quest for optimal engine performance, fuel efficiency, and reduced emissions, modern vehicles rely on a network of sensors. Among these, the knock sensor plays a critical role in protecting the engine from damage while ensuring smooth operation. This article delves into the intricacies of knock sensors, exploring their function, types, and significance in contemporary automotive engineering.

What is a Knock Sensor?

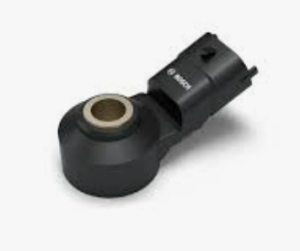

A knock sensor is an electronic device designed to detect abnormal combustion in an engine, known as “knocking” or “pinging.” Engine knocking occurs when the air-fuel mixture ignites prematurely or unevenly, creating pressure waves that collide with engine components. Left unchecked, knocking can cause severe damage, including piston erosion or cylinder wall scoring. The knock sensor alerts the engine control unit (ECU) to mitigate this issue by adjusting ignition timing.

How Does a Knock Sensor Work?
The knock sensor operates using the piezoelectric effect, where certain materials generate an electrical charge under mechanical stress. Mounted on the engine block, cylinder head, or intake manifold, the sensor detects vibrations characteristic of knocking (typically in the 5–15 kHz range). When knocking is identified, the sensor sends a voltage signal to the ECU, which retards the ignition timing to prevent detonation. This process occurs in real time, allowing dynamic adjustments for varying driving conditions.

Types of Knock Sensors

1. Piezoelectric Resonant Sensors: Tuned to specific frequencies, these sensors excel in detecting knock-specific vibrations but may miss signals outside their resonant range.
2. Piezoelectric Non-Resonant (Broadband) Sensors: Capture a wider frequency spectrum, offering versatility across different engine designs.
3. MEMS (Micro-Electromechanical Systems) Sensors: Emerging technology using micro-scale components for precise detection and integration with advanced engine systems.

Location in the Engine
Knock sensors are strategically placed to monitor combustion vibrations effectively. Common locations include:

• The engine block (near cylinders).
• The cylinder head.
• The intake manifold.
  Larger engines may feature multiple sensors to localize knocking.

Role in Engine Management
Beyond preventing damage, knock sensors enhance performance by allowing the ECU to optimize ignition timing. This ensures maximum power output and fuel efficiency while complying with emissions standards. They also enable the use of lower-octane fuels by adjusting timing dynamically, though premium fuel is still recommended for high-performance engines.

Symptoms of a Faulty Knock Sensor

• Check Engine Light: Often triggered by trouble codes (e.g., P0325, P0330).
• Reduced Power and Acceleration: The ECU may default to “limp mode” to protect the engine.
• Poor Fuel Economy: Suboptimal timing reduces efficiency.
• Audible Knocking: Persistent pinging noises under acceleration.

Diagnosing a Bad Knock Sensor

1. Scan for Trouble Codes: Use an OBD-II scanner to identify knock sensor-related codes.
2. Visual Inspection: Check for physical damage or corrosion.
3. Electrical Testing: Measure resistance or output voltage with a multimeter.
4. Oscilloscope Analysis: Assess the sensor’s signal waveform for abnormalities.

Replacing a Knock Sensor

1. Disconnect the Battery: Ensure safety by cutting power.
2. Locate and Remove the Sensor: Unbolt it and disconnect the wiring harness.
3. Install the New Sensor: Adhere to torque specifications to avoid over-tightening.
4. Reset the ECU: Clear codes and allow the system to recalibrate.

Maintenance Tips

• Use the recommended fuel grade to minimize knocking.
• Follow regular service schedules to address underlying issues (e.g., carbon buildup).
• Inspect sensor wiring during routine maintenance for wear or damage.

Importance in Modern Vehicles
Knock sensors are integral to balancing performance and longevity. As engines evolve toward higher compression ratios and turbocharging, precise knock detection becomes even more vital. Future advancements may include AI-driven analysis and wireless sensors for enhanced reliability.

Conclusion
The knock sensor is a unsung hero in engine management, safeguarding against destructive forces while optimizing efficiency. Understanding its function and maintaining its health ensures your vehicle remains both powerful and durable. As automotive technology advances, the knock sensor will continue to play a pivotal role in harmonizing performance with environmental responsibility.
