Understanding the MAP Sensor: Function, Operation, and Importance in Modern Engines

The Manifold Absolute Pressure (MAP) sensor is a critical component in modern internal combustion engines, playing a pivotal role in optimizing performance, fuel efficiency, and emissions. This article delves into the intricacies of MAP sensors, exploring their function, working principles, types, and significance in engine management systems.

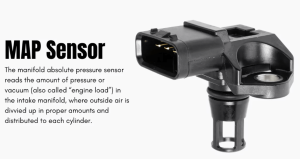

What is a MAP Sensor?

The MAP sensor measures the absolute pressure within the engine’s intake manifold. This data helps the Engine Control Unit (ECU) determine the optimal air-fuel mixture for combustion. Unlike the Mass Air Flow (MAF) sensor, which measures air volume, the MAP sensor infers air density based on pressure, enabling the ECU to calculate fuel delivery and ignition timing accurately.

Key Functions:

1. Pressure Measurement: Detects intake manifold vacuum/boost (in kPa or psi).
2. Engine Load Calculation: Helps the ECU assess load conditions (e.g., idle, acceleration).
3. Fuel Injection Control: Adjusts fuel delivery for stoichiometric efficiency.
4. Ignition Timing: Influences spark timing to prevent knocking or misfires.

Working Principle

The MAP sensor converts manifold pressure into an electrical signal (voltage or frequency) using one of several technologies:

1. Piezoresistive Sensors

• A diaphragm with embedded strain gauges deforms under pressure, altering resistance.
• A Wheatstone bridge circuit translates resistance changes into voltage (e.g., 1–5V).

2. Capacitive Sensors

• Pressure changes alter the distance between capacitor plates, varying capacitance.

3. Piezoelectric Sensors

• Generate voltage in response to mechanical stress from pressure changes.

Output Types:

• Analog: Voltage proportional to pressure (common in older vehicles).
• Digital: Frequency-modulated signal (e.g., 0–200 Hz) for noise resistance.

Location and Integration

The MAP sensor is typically mounted on the intake manifold, connected via a vacuum hose. In turbocharged engines, it monitors boost pressure, while in naturally aspirated engines, it measures vacuum. Some systems integrate the MAP sensor with intake air temperature (IAT) sensing or use it as a barometric pressure (BARO) sensor when the engine is off.

Role in Engine Management Systems

The ECU uses MAP data alongside inputs from the throttle position sensor (TPS), crankshaft position sensor, and oxygen sensors to:

1. Speed-Density Fuel Calculation

• In engines without a MAF sensor, the ECU calculates air mass using:

  Air Mass=P×VR×TAir Mass=R×TP×V​where $P$ = MAP pressure, $V$ = engine displacement, $R$ = gas constant, and $T$ = air temperature (from IAT).

2. Load Detection

• Low pressure (high vacuum) at idle → light load.
• High pressure (low vacuum) at wide-open throttle → heavy load.

3. Turbocharger/Supercharger Control

• Monitors boost pressure to prevent over-boosting and adjust wastegate operation.

4. Emissions Compliance

• Ensures precise fuel metering to reduce harmful emissions.

Types of MAP Sensors

1. Analog MAP Sensors: Output a variable voltage signal.
2. Digital MAP Sensors: Transmit frequency-modulated signals for improved accuracy.
3. Integrated Sensors: Combine MAP with temperature or BARO sensing.

Symptoms of a Faulty MAP Sensor

A malfunctioning MAP sensor can cause:

• Poor acceleration and hesitation
• Rough idle or stalling
• Increased fuel consumption
• Check Engine Light (CEL) with codes (e.g., P0105–P0108)
• Engine knocking or misfires

Diagnosis and Maintenance

Troubleshooting Steps:

1. Scan for Codes: Use an OBD-II scanner to retrieve fault codes.
2. Visual Inspection: Check for cracked vacuum hoses or debris.
3. Live Data Analysis: Compare MAP readings to expected values:
   • KOEO (Key On, Engine Off): ~100 kPa (atmospheric pressure).
   • Idle: 20–30 kPa (high vacuum).
   • WOT: ~100 kPa (naturally aspirated) or higher (turbocharged).
4. Multimeter Testing: Verify voltage/frequency corresponds to applied vacuum (using a hand pump).

Maintenance Tips:

• Clean the sensor and vacuum port periodically.
• Replace damaged hoses or sensors.

MAP vs. MAF Sensors

Applications Across Engine Types

• Naturally Aspirated: Relies on vacuum readings for load calculation.
• Turbocharged/Supercharged: Monitors positive boost pressure.
• Diesel Engines: Critical for turbo-diesel boost management.

Conclusion

The MAP sensor is indispensable for modern engine efficiency and performance. By providing real-time pressure data, it enables precise fuel and ignition control, adapting to varying driving conditions. Regular maintenance and prompt troubleshooting of MAP-related issues ensure optimal engine health and compliance with emission standards. Understanding its role empowers mechanics and enthusiasts alike to diagnose and resolve engine performance issues effectively.
