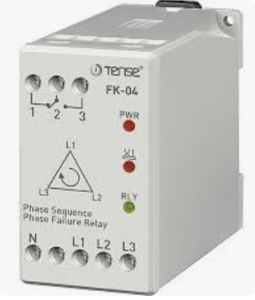

Everything You Need To Know About Phase Failure Relays

Phase Failure Relays (PFRs) are critical components in three-phase electrical systems, designed to protect equipment from damage caused by phase-related anomalies. These relays monitor voltage and phase conditions, ensuring the stability and safety of motors and machinery. This article explores their functions, working principles, types, applications, and more.

1. Functions of a Phase Failure Relay
PFRs perform several protective functions:

• Phase Loss Detection: Detects if one phase is lost, preventing motor burnout.

• Phase Imbalance Monitoring: Identifies unequal phase voltages (typically >5% imbalance), which can cause overheating.

• Phase Reversal Detection: Ensures correct phase sequence (L1-L2-L3) to avoid反向 rotation in motors.

• Undervoltage/Overvoltage Protection: Triggers disconnection if voltages exceed safe thresholds.

2. Working Principle
PFRs continuously monitor phase voltages using internal circuitry. Key mechanisms include:

• Voltage Sensing: Measures each phase’s voltage via potential transformers or direct input.

• Comparison Circuit: Compares phase voltages and sequences against predefined limits.

• Time Delay: Incorporates adjustable delays (e.g., 1–10 seconds) to ignore transient fluctuations.

• Trip Mechanism: Activates relay contacts to disconnect power when faults persist beyond the delay period.

3. Key Features

• Adjustable Thresholds: Customizable voltage and imbalance settings.

• LED Indicators: Visual alerts for fault types (e.g., phase loss, reversal).

• Communication Interfaces: Modbus RTU or RS485 for integration into SCADA/IoT systems.

• Compact Design: DIN rail mounting for easy installation in control panels.

4. Applications
PFRs are vital in industries relying on three-phase power:

• Industrial Motors: Pumps, compressors, conveyors.

• HVAC Systems: Chillers, cooling towers.

• Renewable Energy: Wind turbines, solar inverters.

• Critical Infrastructure: Elevators, escalators, data centers.

5. Types of Phase Failure Relays

• Voltage-Sensing Relays: Monitor phase voltages directly (most common).

• Current-Sensing Relays: Detect current imbalances (less common, used in specific applications).

• Electromechanical Relays: Traditional designs with mechanical contacts.

• Digital/Microprocessor Relays: Offer precise settings, diagnostics, and communication.

6. Installation Considerations

• Wiring: Connect to all three phases (L1, L2, L3) and neutral if required.

• Location: Install near the motor starter or circuit breaker.

• Calibration: Set voltage thresholds and time delays per manufacturer guidelines.

• Safety Compliance: Follow NEC, IEC 60947, and UL 508 standards.

7. Advantages

• Equipment Protection: Prevents motor burnout and mechanical stress.

• Operational Continuity: Reduces downtime by isolating faults early.

• Energy Efficiency: Mitigates power waste from imbalanced loads.

• Safety Enhancement: Lowers fire and electric shock risks.

8. Limitations

• No Overload Protection: Requires pairing with overload relays/circuit breakers.

• False Tripping: Incorrect settings may trigger unnecessary disconnects.

• Phase Dependency: Ineffective in single-phase systems.

9. Troubleshooting Common Issues

• Frequent Tripping: Check for loose connections, load imbalances, or incorrect settings.

• No Power Output: Verify input voltages and relay contact integrity.

• Phase Sequence Errors: Use a phase rotation meter to confirm correct order.

10. Standards and Certifications

• IEC 60947: Governs low-voltage switchgear, including PFRs.

• UL 508: Certification for industrial control panels.

• CE Marking: Indicates compliance with EU safety standards.

11. Future Trends

• Smart Relays: IoT integration for remote monitoring via cloud platforms.

• AI Diagnostics: Predictive analytics to anticipate faults.

• Wireless Connectivity: Bluetooth/Wi-Fi for configuration and alerts.

Conclusion
Phase Failure Relays are indispensable for safeguarding three-phase systems against costly damage. By understanding their functions, proper installation, and emerging trends, industries can enhance reliability and safety. Always consult manufacturer guidelines and pair PFRs with complementary protective devices for comprehensive coverage.
