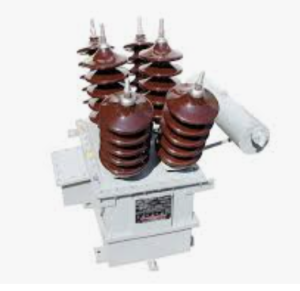

Everything You Need To Know About Potential Transformer

Potential Transformers (PTs), also known as Voltage Transformers (VTs), are critical components in electrical power systems. They safely step down high voltages to standardized, low-voltage levels, enabling accurate measurement, monitoring, and protection without exposing equipment or personnel to dangerous voltages. This article explores their working principles, types, applications, and key considerations.

1. Working Principle
PTs operate on electromagnetic induction, governed by Faraday’s Law. A primary winding connects to the high-voltage circuit, inducing a magnetic field in a laminated steel core. This field then generates a proportional voltage in the secondary winding. The turns ratio (N₁/N₂ = V₁/V₂) determines the step-down factor. For example, a 10,000V primary with a 100:1 ratio yields 100V on the secondary, ideal for instruments rated at 110-120V.

2. Types of Potential Transformers

• Electromagnetic PTs: Traditional iron-core transformers used in low-to-medium voltage systems (up to 132kV).

• Capacitor Voltage Transformers (CVTs): Employ capacitors and inductors for high-voltage transmission networks (66kV+). They provide cost-effective solutions and can also transmit communication signals.

• Optical PTs: Utilize the Faraday or Pockels effect to measure voltage via light polarization changes. These are lightweight, immune to electromagnetic interference, and suitable for digital substations.

3. Key Components

• Primary Winding: Connects to the high-voltage line.

• Secondary Winding: Outputs reduced voltage to instruments.

• Core: Laminated steel to minimize eddy current losses.

• Insulation: Porcelain or polymer housings for high-voltage isolation.

• Terminals: Ensure secure connections and grounding.

4. Applications

• Metering: Billing and energy monitoring (accuracy classes 0.1–0.5).

• Protection Relays: Detect faults (e.g., over/undervoltage) using class 1 or 3P PTs.

• Synchronization: Match phase and voltage when connecting generators to grids.

• Control Systems: Voltage regulation and SCADA systems.

5. Key Characteristics

• Accuracy: Expressed as a percentage (e.g., ±0.2% for class 0.2).

• Burden: Maximum load (in VA) the secondary can handle without error.

• Insulation Class: Withstands specified voltage levels.

• Thermal Rating: Operates safely within temperature limits.

• Phase Angle Error: Critical for power measurements; minimized in precision PTs.

6. Standards

• IEC 61869-2: Global standard for PT performance and testing.

• IEEE C57.13: North American standard for accuracy and construction.
  Compliance ensures safety, interoperability, and reliability.

7. Installation & Maintenance

• Installation:

  • Ensure correct polarity and grounding to prevent shocks.

  • Use fuses/circuit breakers to protect secondary circuits.

• Maintenance:

  • Regular insulation resistance tests.

  • Turns ratio and polarity verification.

  • Visual inspections for damage or contamination.

8. Advantages vs. Disadvantages

• Pros:

  • Safety through voltage isolation.

  • High accuracy for critical applications.

  • Durability in harsh environments.

• Cons:

  • Size/weight challenges at high voltages.

  • Risk of core saturation during faults.

  • Higher costs for specialized types (e.g., optical PTs).

9. PTs vs. Current Transformers (CTs)

• PTs: Measure voltage; secondary can be open-circuited safely.

• CTs: Measure current; open-circuited secondary causes dangerous voltages.
  Both are instrument transformers but serve distinct roles in metering and protection.

10. Common Issues & Solutions

• Core Saturation: Mitigated by designing PTs with adequate flux margins.

• Burden Overload: Use PTs with appropriate VA ratings.

• Insulation Failure: Regular testing and environmental controls.

Conclusion
Potential Transformers are indispensable for safe and efficient power system operation. By understanding their types, applications, and maintenance requirements, engineers can ensure reliable voltage measurement and system protection. As grids evolve, innovations like optical PTs will further enhance accuracy and adaptability in modern substations.
