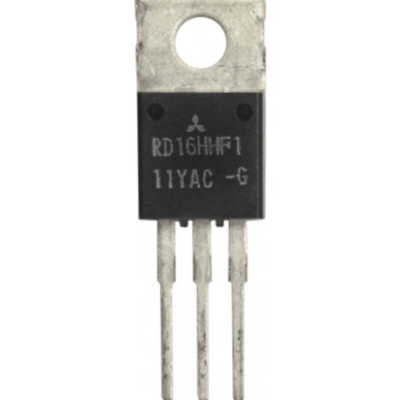

RD16HHF1
Part Number: RD16HHF1
Manufacturer: Mitsubishi, Japan
Shipped from: Singapore/HK Warehouse
Stock Available: Check with us
RD16HHF1 Overview
Description: The RD16HHF1 is a high-voltage N-channel MOSFET designed for efficient power management in various applications, such as switching power supplies and motor control. It features low on-resistance and fast switching speeds, making it suitable for high-performance circuits.
Specifications
| Specification | Value |
|---|---|
| Type | N-Channel MOSFET |
| V_DS (Max) | 160V |
| I_D (Continuous) | 16A |
| R_DS(on) | 0.08Ω |
| V_GS(th) | 2-4V |
| Total Gate Charge (Q_g) | 20nC |
| Package Type | TO-220 |
| Operating Temperature Range | -55°C to +150°C |
| Switching Speed | Fast |
Features
- High Voltage Rating: Operates up to 160V, suitable for high-voltage applications.
- Low On-Resistance: Minimizes power loss, enhancing efficiency.
- Fast Switching Capability: Ideal for high-frequency applications.
- Robust Thermal Performance: Can operate in high-temperature environments.
- Easy to Drive: Compatible with standard gate drive circuits.
Applications
- Switching Power Supplies: Used in DC-DC converters and power management systems.
- Motor Control: Drives motors in industrial automation and robotics.
- LED Drivers: Efficiently manages power for LED lighting systems.
- Battery Management Systems: Used in charging and discharging circuits.
- Automotive Applications: Suitable for electric vehicles and hybrid systems.
