Everything You Need To Know About tantalum capacitor

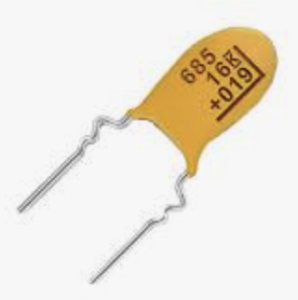

Tantalum capacitors are a specialized type of electrolytic capacitor renowned for their high capacitance density, stability, and reliability. Widely used in compact and high-performance electronics, they leverage tantalum metal for the anode and a high-quality dielectric layer. This article explores their structure, types, applications, and key considerations for use.

Composition and Structure

1. Anode: Made from sintered tantalum powder, forming a porous structure to maximize surface area.

2. Dielectric: A thin layer of tantalum pentoxide (Ta₂O₅) created via electrochemical anodization.

3. Cathode: Typically manganese dioxide (MnO₂) or conductive polymer (e.g., PEDOT), which acts as the electrolyte and secondary conductor.

4. Encapsulation: Coated with epoxy or molded into resin for protection.

Types of Tantalum Capacitors

1. Solid Tantalum (MnO₂):

   • Common in consumer electronics.

   • Moderate ESR, cost-effective.

2. Polymer Tantalum:

   • Conductive polymer cathode offers lower ESR and higher ripple current tolerance.

   • Improved reliability and reduced risk of thermal runaway.

3. Wet Tantalum:

   • Liquid electrolyte for higher voltage ratings (up to 125V).

   • Used in military/aerospace applications; bulkier and more expensive.

Working Principle
Tantalum capacitors operate by storing charge electrostatically. The porous anode increases effective surface area, enabling high capacitance. The Ta₂O₅ dielectric provides high permittivity, while the cathode facilitates ionic conduction.

Key Characteristics

• Capacitance Range: 1µF to 2,200µF.

• Voltage Ratings: 2V to 50V (solid); up to 125V (wet).

• ESR: Lower than aluminum electrolytics; polymer types offer ultra-low ESR.

• Temperature Range: -55°C to +125°C (wider than many ceramics).

• Leakage Current: Higher than ceramics but lower than aluminum electrolytics.

Applications

• Consumer Electronics: Smartphones, laptops (decoupling and filtering).

• Medical Devices: Implants and diagnostic equipment (long-term reliability).

• Aerospace/Military: Avionics, satellites (stable under extreme conditions).

• Automotive: Engine control units, infotainment systems.

Advantages

• High capacitance-to-volume ratio.

• Long operational life with minimal drift.

• Stable performance across temperatures.

• Low leakage current compared to aluminum electrolytics.

Disadvantages

• Sensitive to voltage surges and reverse bias.

• Higher cost than aluminum/ceramic capacitors.

• Risk of catastrophic failure (thermal runaway) if misused.

Failure Modes and Reliability

• Overvoltage: Exceeding rated voltage causes dielectric breakdown.

• Reverse Polarity: Even 1-2V reverse bias can damage the capacitor.

• High Ripple Current: May lead to overheating; mitigated by derating.

• Derating: Recommended to operate at 50% of rated voltage for safety.

Comparison with Other Capacitors

Selection and Usage Considerations

1. Voltage Derating: Use at 50% of rated voltage.

2. Circuit Protection: Include safeguards against reverse polarity and surges.

3. ESR Requirements: Choose polymer types for high-ripple applications.

4. Ethical Sourcing: Opt for conflict-free tantalum (certified via CFSI).

Recent Developments

• Polymer Advancements: Enhanced conductivity and thermal stability.

• Miniaturization: Chip-sized packages (e.g., EIA 0402) for wearables/IoT.

• High-Voltage Designs: Extending limits for industrial applications.

Ethical and Environmental Considerations
Tantalum is a conflict mineral, often sourced from regions with unethical mining practices. Initiatives like the Conflict-Free Sourcing Initiative (CFSI) promote transparency. Manufacturers increasingly adopt recycled tantalum or alternative materials.

Conclusion
Tantalum capacitors offer a unique blend of performance and reliability, making them indispensable in critical and miniaturized applications. Proper understanding of their limitations—voltage sensitivity, cost, and ethical sourcing—ensures optimal and responsible use. As technology evolves, advancements in polymer electrolytes and miniaturization continue to expand their role in modern electronics.
