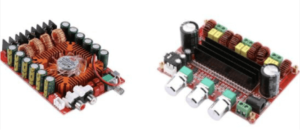

Comparative Analysis: TDA7498E vs. TPA3116D2 Amplifier ICs

The TDA7498E (STMicroelectronics) and TPA3116D2 (Texas Instruments) are popular Class D audio amplifier ICs known for high efficiency and compact design. This analysis compares their specifications, performance, and applications to guide engineers and enthusiasts in selecting the right IC for their needs.

1. Key Specifications Overview

2. Power Output and Voltage Range

• TDA7498E: Excels in high-power applications with a 36V max supply, delivering up to 100W/ch (at 10% THD). Ideal for systems requiring robust output, such as PA systems or subwoofers.
• TPA3116D2: Optimized for moderate power (50W/ch at 1% THD) with a 26V max supply. Suitable for portable speakers, soundbars, or car audio.

Key Insight: At comparable THD levels (e.g., 1%), the TDA7498E’s power advantage narrows but remains superior for high-voltage designs.

3. Efficiency and Thermal Performance

Both ICs achieve ~90% efficiency, but thermal management differs:

• TDA7498E: Higher power output demands robust heatsinking. Includes over-temperature and short-circuit protection.
• TPA3116D2: Efficient heat dissipation via thermal pad; less prone to overheating in low/moderate loads.

4. Audio Quality

• THD and SNR: The TPA3116D2 boasts lower THD (0.1% vs. 0.5%) and higher SNR (95dB vs. 85dB), yielding cleaner audio at low volumes.
• Input Impedance: TPA3116D2’s 300kΩ input impedance minimizes loading on source devices.
• Sound Character: Subjective reviews note the TPA3116D2 as “warmer,” while the TDA7498E is “clinical,” though implementation heavily influences this.

5. Features and Protections

• TPA3116D2:
  • Adjustable gain (20–36dB) via pin configuration.
  • Built-in pop/click suppression and comprehensive protections (over-current, under-voltage).
• TDA7498E:
  • Fixed 32dB gain simplifies design but offers less flexibility.
  • Protections include over-voltage, short-circuit, and thermal shutdown.

6. Design Considerations

• PCB Layout:
  • TPA3116D2’s higher switching frequency (up to 1.2MHz) allows smaller LC filters, reducing board size.
  • TDA7498E’s lower frequency (~200kHz) may require bulkier components.
• External Components: TPA3116D2 requires fewer external parts, easing assembly.
• EMI: Higher switching frequency in TPA3116D2 demands careful EMI mitigation.

7. Applications

• TDA7498E: High-power systems (e.g., home theaters, PA systems, subwoofers).
• TPA3116D2: Moderate-power applications (e.g., soundbars, portable speakers, automotive audio).

8. Cost and Availability

• The TPA3116D2 is widely available and cost-effective (~$3–$5 per IC).
• The TDA7498E is pricier (~$6–$10) but justified for high-power needs.

Conclusion

• Choose TDA7498E if prioritizing raw power and high-voltage operation.
• Choose TPA3116D2 for superior audio clarity, lower noise, and compact designs.

Both ICs excel in their niches, with the decision hinging on power requirements, design complexity, and audio fidelity priorities.
