What Are Current-Sensing Solutions: A Comprehensive Overview

Current sensing is a critical function in modern electronics, enabling the measurement and monitoring of electric current flow in various applications. From enhancing energy efficiency to ensuring system safety, current-sensing solutions are indispensable in industries such as automotive, renewable energy, industrial automation, and consumer electronics. This article delves into the principles, technologies, applications, challenges, and future trends in current sensing.

Principles of Current Sensing

Current sensing involves converting current into a measurable voltage or digital signal. Key principles include:

• Ohm’s Law: Utilized in shunt resistors, where voltage drop (V = I × R) across a known resistance measures current.
• Magnetic Field Detection: Hall effect and magnetoresistive sensors detect magnetic fields generated by current flow.
• Electromagnetic Induction: Current transformers (CTs) and Rogowski coils use inductive coupling for AC current measurement.

Current-Sensing Technologies

1. Shunt Resistors

• Principle: Measures voltage drop across a low-value resistor in series with the load.
• Pros: Simple, cost-effective, suitable for AC/DC.
• Cons: Power dissipation, limited isolation, temperature sensitivity.
• Applications: Battery management, motor control.

2. Hall Effect Sensors

• Principle: Generates voltage proportional to the magnetic field from current flow.
• Pros: Non-contact, isolation, DC/AC capability.
• Cons: Susceptible to external magnetic fields, moderate accuracy.
• Applications: Automotive systems, power supplies.

3. Current Transformers (CTs)

• Principle: Induces secondary current proportional to primary AC current.
• Pros: High isolation, no power loss.
• Cons: AC-only, bulky, saturation issues.
• Applications: Power grid monitoring, energy meters.

4. Rogowski Coils

• Principle: Air-core coil measuring current rate-of-change, integrated to output current.
• Pros: Flexible, high-frequency response, no saturation.
• Cons: Complex signal conditioning, AC-only.
• Applications: Transient analysis, industrial machinery.

5. Magnetoresistive Sensors (AMR/GMR)

• Principle: Resistance changes with magnetic field direction/strength.
• Pros: High sensitivity, compact, DC/AC capable.
• Cons: Higher cost, temperature sensitivity.
• Applications: Precision industrial systems, automotive.

6. Fiber-Optic Sensors

• Principle: Faraday effect alters light polarization with current-induced magnetic fields.
• Pros: EMI immunity, high-voltage isolation.
• Cons: Expensive, complex setup.
• Applications: High-voltage transmission, substations.

Applications

• Power Management : Optimizing efficiency in SMPS, inverters.
• Automotive: Battery monitoring, traction inverters (EVs).
• Industrial: Motor drives, overcurrent protection.
• Renewables: Solar inverters, wind turbine monitoring.
• Consumer Electronics: Chargers, circuit protection.

Challenges

• Isolation: High-voltage applications require galvanic isolation (e.g., Hall sensors, CTs).
• Accuracy: Temperature drift (shunt resistors), external interference (Hall effect).
• Bandwidth: High-speed switching (e.g., SiC/GaN devices) demands fast sensors.
• Integration: Balancing size, cost, and performance in compact designs.

Integrated Solutions

Modern ICs simplify design by integrating sensing, amplification, and digitization:

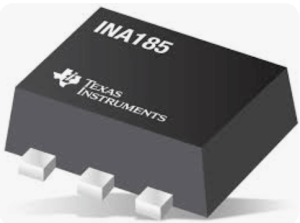

• Current Sense Amplifiers: TI’s INA series amplifies shunt resistor outputs with high CMRR.
• Isolated Sensors: Analog Devices’ ADuCM360 offers galvanic isolation for industrial apps.
• Digital Sensors: Infineon’s XENSIV™ TLI4971 provides I2C output for easy integration.

Emerging Trends

• Wide-Bandgap Semiconductors: Demand faster, high-temperature sensors.
• Digitalization: IoT-enabled sensors with SPI/I2C for smart grids and Industry 4.0.
• Miniaturization: MEMS and thin-film technologies for compact solutions.
• AI Integration: Predictive maintenance using current signature analysis.

Standards and Safety

• IEC 61010: Safety requirements for electrical equipment.
• ISO 26262: Automotive functional safety standards.
• UL Certification: Ensures consumer device safety.

Conclusion

Current-sensing solutions are pivotal in advancing technology across sectors. While traditional methods like shunt resistors and CTs remain prevalent, innovations in magnetoresistive and fiber-optic sensors address evolving needs for accuracy, isolation, and speed. Integrated ICs and digital solutions are driving ease of use, while trends toward miniaturization and AI integration promise transformative future applications. As industries push toward efficiency and connectivity, current sensing will continue to be a cornerstone of electronic system design.
