What Is Chiplet? A Comprehensive Guide

In the face of slowing Moore’s Law and rising costs of semiconductor fabrication, the industry has turned to innovative design paradigms like  chiplets . This approach reimagines traditional monolithic System-on-Chips (SoCs) by disaggregating them into smaller, modular components. This guide explores the concept, benefits, challenges, and future of chiplets, offering a deep dive into their transformative role in modern computing.

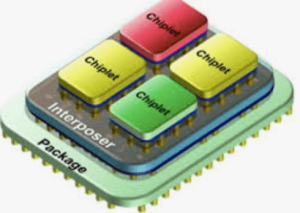

1. What is a Chiplet?
A chiplet is a discrete integrated circuit (IC) that encapsulates a specific functionality (e.g., CPU cores, memory, I/O) and is designed to interoperate with other chiplets within a single package. Unlike monolithic SoCs, which integrate all components on a single die, chiplets enable a “divide-and-conquer” strategy, improving scalability, cost, and performance.

Key Characteristics:

• Modularity: Chiplets can be mixed, matched, and reused across products.

• Heterogeneous Integration: Different chiplets can use distinct process nodes, materials, or architectures.

• Advanced Packaging: Leverages 2.5D/3D stacking and high-density interconnects for integration.

2. How Do Chiplets Work?
Chiplets rely on two critical technologies: interconnects and packaging.

• Interconnects:
  Communication between chiplets requires high-bandwidth, low-latency interfaces. Standards like Universal Chiplet Interconnect Express (UCIe), developed by Intel, AMD, and others, aim to unify chiplet communication. Proprietary solutions like AMD’s Infinity Fabric and Intel’s Advanced Interface Bus (AIB) also exist.

  • UCIe: An open standard supporting PCIe, CXL, and other protocols, enabling cross-vendor compatibility.

  • EMIB (Intel): Embedded Multi-die Interconnect Bridge uses silicon bridges for dense, low-power connections.

  • TSVs (Through-Silicon Vias): Enable vertical stacking in 3D packaging.

• Packaging:

  • 2.5D: Chiplets placed side-by-side on a silicon interposer (e.g., AMD’s EPYC CPUs).

  • 3D: Stacked chiplets connected via TSVs (e.g., Intel’s Foveros).

  • Fan-Out Wafer-Level Packaging (FOWLP): Cost-effective for consumer devices.

3. Advantages of Chiplets

• Cost Efficiency: Smaller dies improve yield; older nodes can be used for non-critical functions.

• Design Flexibility: Reusable IP blocks reduce development time (e.g., AMD’s Zen cores across Ryzen/EPYC).

• Performance Optimization: Critical components (CPU/GPU) use cutting-edge nodes, while I/O uses mature nodes.

• Heterogeneous Integration: Combine analog, digital, and memory chiplets for specialized applications (e.g., AI accelerators).

• Scalability: Easily add cores or features by integrating more chiplets.

4. Challenges and Limitations

• Thermal Management: Heat dissipation becomes complex in densely packed designs.

• Testing Complexity: Individual chiplet testing + system-level validation increases costs.

• Interconnect Latency: Off-die communication can introduce delays.

• Standardization: While UCIe is gaining traction, fragmentation persists.

• Power Delivery: Ensuring uniform power across chiplets is challenging.

• Design Complexity: Requires co-optimization of chiplets, interconnects, and packaging.

5. Applications and Real-World Examples

• High-Performance Computing (HPC): AMD’s EPYC CPUs use 8-12 core chiplets (CCDs) and an I/O die.

• Consumer Electronics: Apple’s M1 Ultra combines two M1 Max dies via UltraFusion interconnect.

• AI/ML: NVIDIA’s Grace Hopper Superchip pairs CPU and GPU chiplets.

• Data Centers: Intel’s Ponte Vecchio GPU integrates 47 tiles using EMIB and Foveros.

6. Industry Trends and Collaborations

• UCIe Consortium: Aims to standardize chiplet ecosystems, with members like Google, Meta, and Qualcomm.

• Advanced Packaging R&D: TSMC’s CoWoS and Samsung’s X-Cube focus on 3D integration.

• Chiplet Marketplaces: Companies like Arteris IP offer licensable chiplet IP to foster modular design.

7. Future Outlook

• 3D Stacking: Enhanced performance via vertical integration (e.g., memory-on-logic).

• AI-Driven Design: Machine learning to optimize chiplet placement and interconnects.

• Sustainability: Reduced e-waste through reusable chiplets and improved energy efficiency.

• Democratization: Smaller firms could leverage chiplets to compete with industry giants.

Conclusion
Chiplets represent a paradigm shift in semiconductor design, offering a path forward as Moore’s Law wanes. By enabling modularity, cost savings, and heterogeneous integration, they are reshaping industries from HPC to consumer tech. While challenges like thermal management and standardization remain, ongoing innovations in packaging and interconnect technologies promise to unlock new frontiers in computing power and efficiency. As the UCIe ecosystem matures, chiplets may well become the cornerstone of next-generation electronics.
