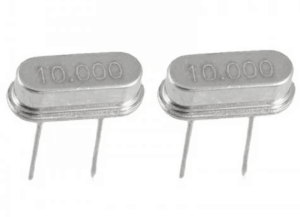

What Is Crystal Oscillator: A Comprehensive Guide

A crystal oscillator is an electronic circuit that uses the mechanical resonance of a vibrating piezoelectric crystal to generate a precise electrical signal with a stable frequency. This frequency is critical for timing, synchronization, and frequency stability in devices ranging from wristwatches to spacecraft. In this guide, we explore the history, working principles, types, applications, and future trends of crystal oscillators.

Historical Background

The development of crystal oscillators began in the early 20th century with the discovery of the piezoelectric effect by Jacques and Pierre Curie (1880). Key milestones include:

• 1921: Walter Guyton Cady built the first quartz crystal oscillator for frequency stabilization.
• 1927: Warren Marrison created the first quartz clock using a crystal oscillator.
• WWII: Crystal oscillators became vital for military radios and radar systems.
• Modern Era: Miniaturization enabled their use in consumer electronics, telecommunications, and computing.

Working Principle

Piezoelectric Effect

Quartz crystals exhibit the piezoelectric effect: applying mechanical stress generates an electric charge, and vice versa. When placed in an oscillating circuit, the crystal vibrates at its natural resonant frequency, determined by its physical dimensions and cut.

Equivalent Circuit Model

A quartz crystal can be modeled electrically as:

• Motional Components (L1, C1, R1): Represent the crystal’s mechanical resonance.
• Shunt Capacitance (C0): Due to the electrodes and package.

The crystal has two resonant frequencies:

1. Series Resonance (Fs): Where impedance is minimal (L1-C1-R1 dominate).
2. Parallel Resonance (Fp): Where impedance is maximal (C0 interacts with L1-C1).

Oscillator Circuit

A feedback circuit (e.g., Pierce or Colpitts oscillator) amplifies noise, which the crystal filters to sustain oscillation at its resonant frequency. The circuit must meet the Barkhausen criteria: loop gain ≥1 and phase shift = 360°.

Types of Crystal Oscillators

1. Simple Crystal Oscillator (XO)

• Basic design with no compensation.
• Frequency Stability: ±10 to ±100 ppm.
• Applications: Consumer electronics, microcontrollers.

2. Temperature-Compensated Crystal Oscillator (TCXO)

• Compensates for frequency drift due to temperature using a voltage-controlled capacitor.
• Stability: ±0.5 to ±5 ppm.
• Applications: GPS, mobile phones.

3. Oven-Controlled Crystal Oscillator (OCXO)

• Heats the crystal to a constant temperature using a miniature oven.
• Stability: ±0.001 to ±0.1 ppm.
• Applications: Aerospace, military, base stations.

4. Voltage-Controlled Crystal Oscillator (VCXO)

• Frequency adjusted via an external voltage.
• Tuning Range: ±50 to ±200 ppm.
• Applications: Phase-locked loops (PLLs), telecom.

5. MEMS Oscillators

• Silicon-based micro-electromechanical systems (MEMS).
• Advantages: Shock resistance, smaller size.
• Challenges: Higher phase noise than quartz.

Key Specifications

1. Frequency Range: Typically 1 kHz to 300 MHz (fundamental mode). Higher frequencies use overtone modes (up to 1 GHz).
2. Frequency Stability: Deviation from nominal frequency due to temperature, aging, etc. Expressed in parts per million (ppm).
3. Aging: Long-term frequency drift (e.g., ±1 ppm/year).
4. Load Capacitance: External capacitance required for oscillation (e.g., 12–32 pF).
5. Phase Noise: Short-term frequency fluctuations, critical in RF applications.

Applications

• Consumer Electronics: Clocks, smartphones, TVs.
• Computing: CPU clock signals, USB synchronization.
• Communications: Radios, base stations, satellites.
• Industrial: Sensors, PLCs.
• Aerospace/Defense: Navigation systems, avionics.

Design Considerations

1. Stability vs. Power/Cost: OCXOs offer high stability but consume more power.
2. Environmental Factors: Temperature, vibration, and humidity affect performance.
3. Circuit Layout: Minimize parasitic capacitances and ensure proper grounding.
4. Startup Time: TCXOs and OCXOs may have longer startup times than XOs.

Testing and Troubleshooting

• Frequency Counter: Measure output frequency.
• Impedance Analyzer: Verify resonant frequencies.
• Common Issues:
  • Frequency Drift: Check temperature compensation or aging.
  • No Oscillation: Verify circuit design, load capacitance, and crystal integrity.

Future Trends

1. MEMS Technology: Improved phase noise and integration with ICs.
2. Miniaturization: Smaller packages for IoT and wearables.
3. Advanced Compensation: AI-driven temperature compensation.
4. Optical Oscillators: Emerging tech for ultra-high stability.

Conclusion

Crystal oscillators remain indispensable for precision timing. While MEMS and optical technologies advance, quartz-based oscillators continue to dominate due to their unmatched stability. Engineers must balance factors like cost, size, and environmental resilience to select the optimal solution for their application.

This guide provides a foundational understanding of crystal oscillators, empowering designers to leverage their capabilities in next-generation systems.
