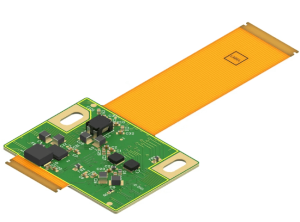

What Is Flexible Printed Circuits (FPC): A Comprehensive Guide

Flexible Printed Circuits (FPCs) are thin, lightweight electronic circuits that can bend, twist, and conform to dynamic shapes. They have revolutionized industries by enabling compact, durable, and high-performance designs in applications ranging from smartphones to medical implants. This guide explores FPCs’ structure, materials, manufacturing, applications, and future trends.

1. What Are Flexible Printed Circuits?

FPCs consist of conductive traces bonded to flexible polymer substrates, replacing traditional rigid wiring. Key features include:

• Bendability: Can endure repeated flexing without damage.
• Lightweight: Ideal for portable devices.
• Space Efficiency: Reduces device footprint by up to 60% compared to rigid PCBs.

2. Structure and Materials

Layer-by-Layer Breakdown

1. Substrate: Polyimide (PI) is most common due to its thermal stability (-269°C to +400°C). Alternatives include PET (cost-effective) and LCP (moisture-resistant).
2. Conductive Layer: Rolled annealed copper (RA) for flexibility or electro-deposited copper (ED) for cost. Thickness ranges from 12–70 µm.
3. Adhesives: Acrylic or epoxy bond layers. Adhesive-less constructions enhance thermal performance.
4. Coverlay: Protective polyimide film with openings for soldering.
5. Stiffeners: Rigid sections (e.g., FR4) added for connectors or components.

3. Manufacturing Process

1. Design: CAD tools account for bend radius, thermal expansion, and signal integrity.
2. Imaging: Photolithography transfers circuit patterns onto copper.
3. Etching: Chemical removal of excess copper.
4. Drilling: Laser or mechanical drilling for vias.
5. Plating: Electroless nickel/gold for conductivity and corrosion resistance.
6. Coverlay Application: Laminated using heat and pressure.
7. Testing: Automated optical inspection (AOI) and continuity checks.

4. Applications

• Consumer Electronics: Smartphone displays, foldable devices, wearables.
• Automotive: Dashboard controls, sensors, LED lighting.
• Medical: Implantable devices, endoscopes, diagnostic tools.
• Aerospace: Satellite components, avionics.
• Industrial: Robotics, IoT sensors.

5. Advantages and Challenges

Advantages

• Durability: Withstand millions of flex cycles.
• Weight Reduction: Critical for aerospace and wearables.
• High-Density Routing: Supports complex layouts.

Challenges

• Cost: 20–30% pricier than rigid PCBs.
• Design Complexity: Requires expertise in mechanical stress analysis.
• Sensitivity: Vulnerable to improper handling during assembly.

6. Design Considerations

• Bend Radius: Minimum 6x substrate thickness for dynamic flexing.
• Thermal Management: Use adhesive-less layers for high-temperature apps.
• Signal Integrity: Shielding and impedance control for high-speed signals.
• Component Placement: Avoid stress points near connectors.

7. FPC vs. Rigid PCBs vs. Rigid-Flex

8. Future Trends

• Advanced Materials: LCP and transparent conductive films for foldable displays.
• 3D Printing: Rapid prototyping of complex geometries.
• Sustainability: Biodegradable substrates and lead-free soldering.
• Integration: FPCs in stretchable electronics and AI-driven IoT devices.

9. Troubleshooting Common Issues

• Cracking Traces: Ensure adequate bend radius and strain relief.
• Delamination: Use high-temperature adhesives for thermal cycling.
• Signal Loss: Optimize trace thickness and shielding.

Conclusion

FPCs are indispensable in modern electronics, offering unmatched flexibility and innovation potential. As materials and manufacturing evolve, they will enable breakthroughs in wearables, healthcare, and beyond. Engineers must balance design complexity with performance to harness their full potential.
