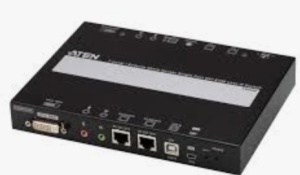

What Is KVM Switch: A Comprehensive Guide

A KVM Switch (Keyboard, Video, Mouse) is a hardware device that allows users to control multiple computers or servers using a single set of peripherals. By toggling between connected systems, it eliminates the need for separate keyboards, monitors, and mice for each machine, streamlining workspace efficiency and reducing clutter. This guide explores the history, functionality, types, applications, and future trends of KVM switches.

History

KVM switches emerged in the late 1980s and 1990s as data centers and server farms grew, necessitating efficient management of multiple systems. Early adopters included companies like Cybex and Aten, which developed analog switches using physical relays. With advancements in digital technology, KVM over IP (remote access via network) and support for modern interfaces like HDMI and USB-C evolved, catering to diverse needs from industrial servers to home offices.

Components and How It Works

A KVM switch comprises:

1. Input Ports: Connect peripherals (keyboard, mouse, monitor).
2. Output Ports: Link to computers/servers.
3. Switching Mechanism: Physical buttons, hotkeys (e.g., Scroll Lock + Num Keys), or software to toggle between systems.
4. Cables: Often included for video (HDMI, DisplayPort, VGA) and USB/PS/2 connections.

How It Works:

• The switch routes input signals (keyboard/mouse) and video output between connected devices.
• Advanced models use EDID emulation to maintain consistent display settings and peripheral emulation to prevent connection drops when switched away.

Types of KVM Switches

1. By Port Count:
   • 2-Port to 16-Port: For small offices to data centers.
   • Cascadable: Connect multiple switches for scalability.
2. By Technology:
   • Analog: Uses physical relays; cost-effective but limited to short distances.
   • Digital (KVM over IP): Remote access via network, ideal for global server management.
3. By Interface:
   • Legacy: VGA, PS/2.
   • Modern: HDMI, DisplayPort, USB-C, Thunderbolt.
4. Specialized:
   • Matrix KVMs: Connect multiple users to multiple computers.
   • Wireless KVMs: Emerging tech for cable-free setups.

Applications

• Data Centers: Manage racks of servers from a single console.
• Offices: Switch between work and personal devices seamlessly.
• Gaming/Streaming: Control gaming PCs and consoles with one setup.
• Industrial Control: Monitor machinery via centralized stations.

Benefits

• Cost Savings: Reduce peripheral purchases.
• Space Efficiency: Minimize desk clutter.
• Centralized Control: Streamline workflow across systems.
• Security: Limit physical access to sensitive servers.

Choosing a KVM Switch: Key Considerations

1. Port Count: Match to the number of computers.
2. Resolution Support: 4K@60Hz for gaming/design; 1080p for basic use.
3. Interface Compatibility: USB 3.0 for high-speed peripherals; HDMI/DP for modern monitors.
4. Switching Method: Hotkeys, front-panel buttons, or software.
5. OS Compatibility: Ensure support for Windows, macOS, Linux.
6. Advanced Features: Audio support, USB hubs, virtual media.

Setup and Installation

1. Connect peripherals to the KVM.
2. Link computers via appropriate cables.
3. Configure EDID/emulation settings if needed.
4. Test switching via preferred method (hotkey/button).

Tips:

• Use high-quality cables to avoid signal loss.
• For KVM over IP, secure connections with VPN/encryption.

Advanced Features

• KVM over IP: Access systems remotely via web interface.
• Virtual Media: Mount ISO/USB drives over the network.
• User Authentication: Role-based access control.
• Daisy-Chaining: Expand port capacity with cascaded switches.

Limitations

• Latency: KVM over IP may lag compared to direct connections.
• Resolution Limits: Cheaper models may not support 4K/120Hz.
• Compatibility Issues: Some BIOS/UEFI setups may not detect peripherals.
• Cost: High-end KVMs (e.g., matrix, 8K) can be expensive.

Future Trends

• Higher Resolutions: Support for 8K and HDR.
• USB4/Thunderbolt Integration: Unified connectivity for ultra-high bandwidth.
• Wireless KVMs: Bluetooth/Wi-Fi-enabled switching.
• Cloud Integration: Hybrid solutions for on-premise and cloud servers.

Conclusion

KVM switches are indispensable tools for optimizing multi-computer environments. From cost savings to enhanced productivity, their versatility spans data centers, offices, and home setups. As technology advances, expect broader compatibility, higher performance, and innovative features like wireless control. Whether managing servers or gaming rigs, a well-chosen KVM switch transforms clutter into efficiency.
