What Is RJ45 Connector: A Comprehensive Guide

The RJ45 connector is a ubiquitous component in modern networking, essential for Ethernet communications. Often confused with the 8P8C modular connector, the term “RJ45” has become synonymous with Ethernet connectivity. This guide explores its design, standards, applications, and practical usage.

1. What is an RJ45 Connector?

• Definition: A standardized physical interface for connecting telecommunications equipment. The “RJ” stands for Registered Jack, and “45” denotes the interface standard.
• Key Features:
  • 8P8C Configuration: 8 positions, 8 contacts (often mistaken as RJ45’s official name).
  • Plastic Housing: Includes a locking clip for secure connections.
  • Gold-Plated Contacts: Ensure reliable signal transmission.
• Primary Use: Terminating Ethernet cables (Cat5, Cat6, etc.) for LANs, WANs, and PoE (Power over Ethernet).

2. RJ45 vs. 8P8C: Clarifying the Confusion

• Historical Context: Original RJ45 was a telephone connector with a keyed interface.
• Modern Usage: Today’s Ethernet “RJ45” is technically an 8P8C connector, though the term persists.

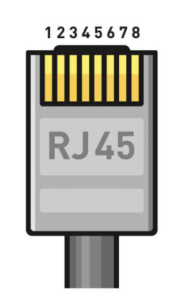

3. Anatomy of an RJ45 Connector

• Components:
  • Contacts (Pins): Eight metal pins for data transmission.
  • Locking Tab: Secures the cable in the port.
  • Strain Relief: Prevents cable damage near the connector.
  • Cable Entry: Accommodates twisted-pair cables.
• Shielded vs. Unshielded:
  • UTP (Unshielded): Common in home networks.
  • STP (Shielded): Used in industrial settings to reduce EMI.

4. Wiring Standards: T568A vs. T568B

• Color Codes:

  T568A	T568B
  1. Green/White	1. Orange/White
  2. Green	2. Orange
  3. Orange/White	3. Green/White
  4. Blue	4. Blue
  5. Blue/White	5. Blue/White
  6. Orange	6. Green
  7. Brown/White	7. Brown/White
  8. Brown	8. Brown

• Usage Guidelines:
  • T568B: Predominant in North America for Ethernet.
  • T568A: Used in government/telecom settings.
  • Straight-Through Cable: Same standard on both ends (e.g., connecting a PC to a router).
  • Crossover Cable: T568A on one end, T568B on the other (rarely needed due to auto-MDIX).

5. Types of RJ45 Connectors

• Standard Connectors: For Cat5/Cat6 cables.
• Shielded (STP): Foil or braid shielding for EMI protection.
• Pass-Through: Allow wires to protrude for easier alignment.
• Slim/RJ45-SFF: Compact design for tight spaces.
• Industrial: Ruggedized, waterproof variants for harsh environments.
• Cat-Specific: Cat6/6a connectors support higher frequencies (up to 500 MHz).

6. Crimping an RJ45 Connector: Step-by-Step

Tools Required: Crimping tool, wire stripper, cable tester, RJ45 connectors.

Procedure:

1. Strip the Cable: Remove ~2 cm of the outer jacket.
2. Untwist Pairs: Arrange wires per T568A/B.
3. Trim Wires: Cut evenly, leaving ~1.2 cm exposed.
4. Insert into Connector: Ensure order is correct; pass-through connectors simplify this step.
5. Crimp: Squeeze tool firmly to secure contacts.
6. Test: Use a cable tester to verify continuity.

Common Mistakes:

• Incorrect wire order.
• Insufficient jacket stripping.
• Over-trimming wires.

7. Applications of RJ45 Connectors

• Ethernet Networks: LANs, data centers, and home networks.
• Power over Ethernet (PoE): Delivers power to devices like IP cameras (IEEE 802.3af/at/bt).
• Industrial Automation: Rugged connectors for machinery.
• Telecommunications: Legacy systems and VoIP phones.

8. Troubleshooting Common Issues

• No Connectivity: Check wiring order and crimp quality.
• Intermittent Signals: Inspect for bent pins or damaged clips.
• Crosstalk: Use shielded connectors and avoid untwisting wires excessively.
• Testing Tools: Cable testers, multimeters, or network analyzers.

9. Future Trends and Considerations

• Higher Speeds: Cat8 (40 Gbps, 2 GHz) demands advanced shielding.
• Fiber Optics: Growing adoption, but RJ45 remains dominant for short-range copper networks.
• Modular Innovations: Slim connectors for high-density installations.

10. Glossary

• PoE: Power over Ethernet.
• EMI: Electromagnetic interference.
• Auto-MDIX: Automatic crossover detection in modern devices.

Conclusion

The RJ45 connector is a cornerstone of wired networking, evolving to meet higher speed and reliability demands. Understanding its standards, proper crimping techniques, and applications ensures robust network performance. As technology advances, RJ45 adapts, maintaining its relevance in an increasingly connected world.
