What Is SERDES? A Comprehensive Overview

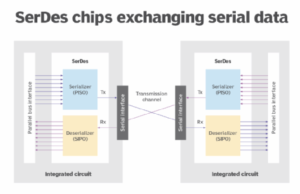

In the realm of digital communication, the need for efficient data transmission over long distances has driven the development of Serializer/Deserializer (SERDES) technology. SERDES is a critical component in modern electronics, enabling high-speed data transfer by converting parallel data into a serial stream for transmission and reconstructing it back into parallel data at the receiving end. This technology addresses the limitations of parallel buses, which suffer from signal skew, crosstalk, and physical space constraints, especially as data rates escalate.

Basic Functionality

Serializer

The serializer converts parallel data (multiple bits processed simultaneously) into a serial bitstream. It typically uses a shift register and a high-speed clock to sequentially transmit each bit over a single channel. For example, a 32-bit parallel input might be clocked out as a continuous sequence of bits at 32 times the original clock rate.

Deserializer

The deserializer performs the inverse operation, reassembling the serial stream into parallel data. It synchronizes with the incoming data, often using a Clock Data Recovery (CDR) circuit to extract the clock signal embedded in the data transitions, ensuring accurate bit sampling.

Clock Data Recovery (CDR)

CDR is pivotal in high-speed systems where separate clock lines are impractical. Using techniques like Phase-Locked Loops (PLLs) or Delay-Locked Loops (DLLs), the receiver aligns its internal clock with the transmitter’s, mitigating timing discrepancies caused by signal propagation delays.

Key Components and Technologies

Encoding Schemes

To facilitate reliable communication, SERDES often employs encoding methods such as 8b/10b or 64b/66b. These schemes ensure sufficient signal transitions for CDR and maintain DC balance, reducing electromagnetic interference (EMI). For instance, 8b/10b maps 8-bit data to 10-bit symbols, embedding clock information and error detection.

Equalization Techniques

High-speed signals degrade over distances due to channel loss and noise. Equalization techniques like pre-emphasis (boosting high-frequency components at the transmitter) and decision feedback equalization (DFE) at the receiver compensate for these effects, preserving signal integrity.

Differential Signaling

Low-Voltage Differential Signaling (LVDS) is commonly used, transmitting data as the difference between two complementary signals. This method reduces EMI and enhances noise immunity compared to single-ended signaling.

Applications of SERDES

SERDES is ubiquitous in interfaces requiring high-speed data transfer:

• Data Centers: Connecting servers and switches via Ethernet (100GbE, 400GbE) and InfiniBand.

• Consumer Electronics: USB 3.2/4, Thunderbolt, HDMI, and PCI Express (PCIe) in computers.

• Automotive: Enabling Advanced Driver-Assistance Systems (ADAS) through high-speed camera and sensor links.

• Telecommunications: Fiber-optic networks and 5G infrastructure rely on SERDES for backbone connectivity.

Technical Challenges and Solutions

Signal Integrity and Jitter

At multi-gigabit speeds, jitter (timing variations) and intersymbol interference (ISI) become critical. Advanced modulation like PAM4 (Pulse Amplitude Modulation 4-level) doubles data rates by encoding two bits per symbol, though it requires sophisticated error correction.

Power Consumption

High-speed SERDES circuits consume significant power. Innovations like adaptive equalization dynamically adjust power based on channel conditions, optimizing efficiency.

Thermal Management

Heat dissipation from dense SERDES arrays in ASICs or FPGAs necessitates advanced cooling solutions and low-power design methodologies.

Standards and Protocols

SERDES operates under various industry standards:

• PCIe: Version 6.0 supports 64 GT/s per lane using PAM4.

• Ethernet: IEEE 802.3 standards define 100G/400G implementations.

• OIF (Optical Internetworking Forum): Specifies CEI (Common Electrical Interface) guidelines for 112 Gbps links.

Recent Advances and Future Trends

• Higher Data Rates: Emerging standards target 224 Gbps per lane using advanced materials like silicon photonics.

• Integration with Optics: Co-packaged optics (CPO) merge SERDES with optical transceivers to reduce latency and power.

• AI-Driven Optimization: Machine learning models enhance equalization and error correction, adapting to dynamic channel conditions.

Conclusion

SERDES technology is indispensable in the era of big data, enabling the high-speed, reliable communication underpinning modern infrastructure. As demands for bandwidth grow, innovations in modulation, materials, and intelligent signal processing will continue to push the boundaries of what SERDES can achieve, solidifying its role in future technologies like 6G, quantum networking, and beyond.
